Network port (port)¶
Settings - You can check and change ports on the network.
Below are the default ports used by NVR.
Network server port: 8081
HTTP server port: 80
RTSP server port: 554
Remote control port: 5900
SSH port: 22

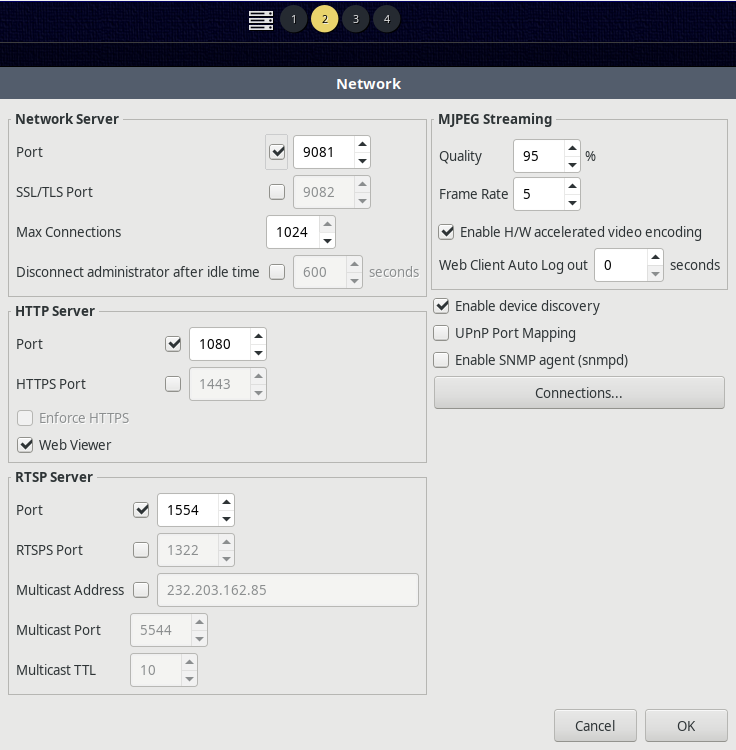

If NVR+/VMS has multiple servers, 1000 will be added each time the server number goes up.
This is available on each server network settings page.
Example)
| Server | Network Server port | HTTP port | RTSP port |
|---|---|---|---|
| 1 | 8081 | 80 | 554 |
| 2 | 9081 | 1080 | 1554 |
| 3 | 10081 | 2080 | 2554 |
