Dongbang Electronics fire detection sensor integration¶

Dongbang Electronics fire detection sensor integration ¶

Basic requirements for Dongbang Electronics fire monitoring sensor integration ¶

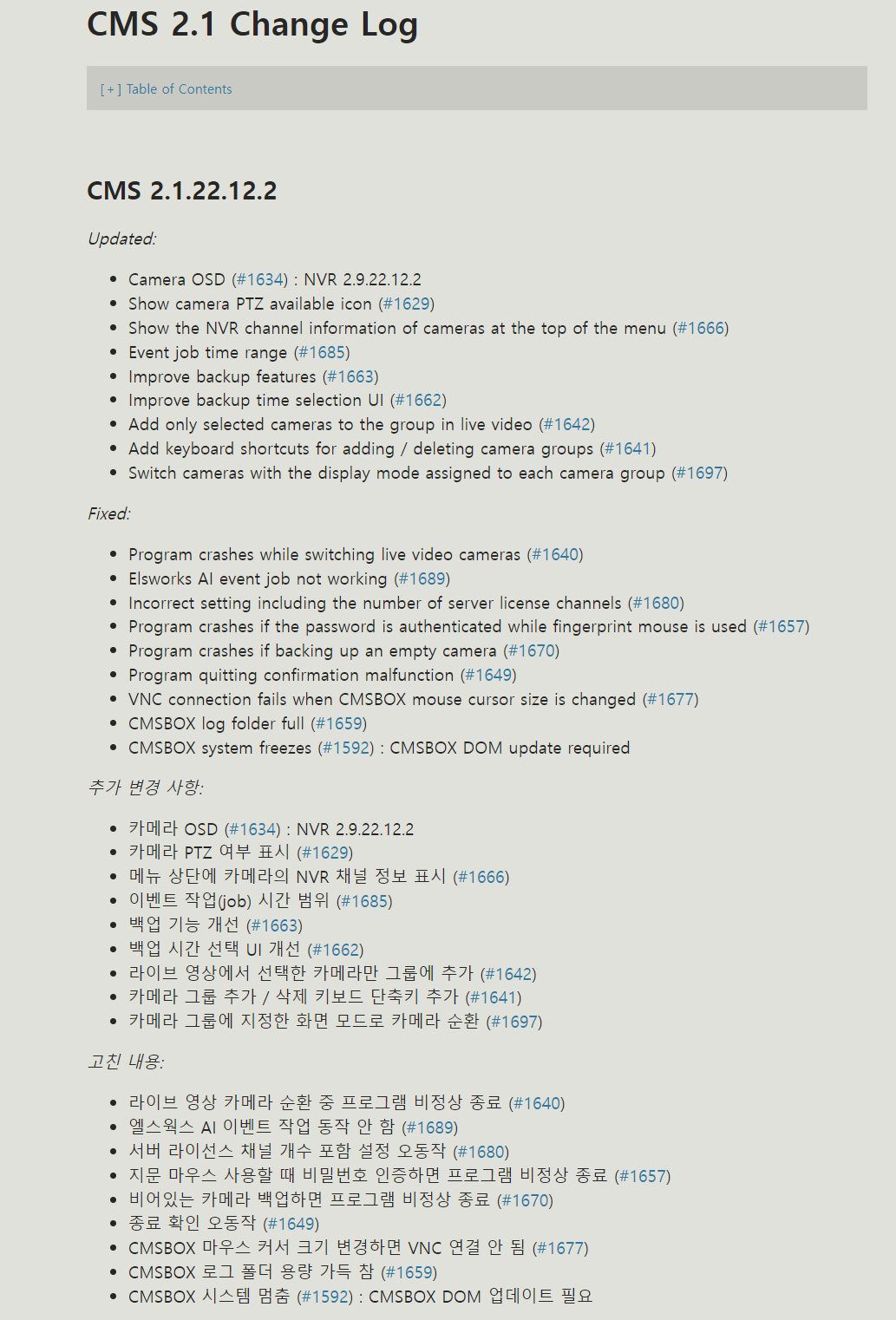

Supported on NVR version 2.9.22.12.2 or later

Supported on CMS version 2.9.22.12.2 or later

-Download location

https://www.emstone.com/ko/support/software/

Enabling VMS Dongbang Electronics system integration ¶

Enabling Dongbang Electronics system integration ¶

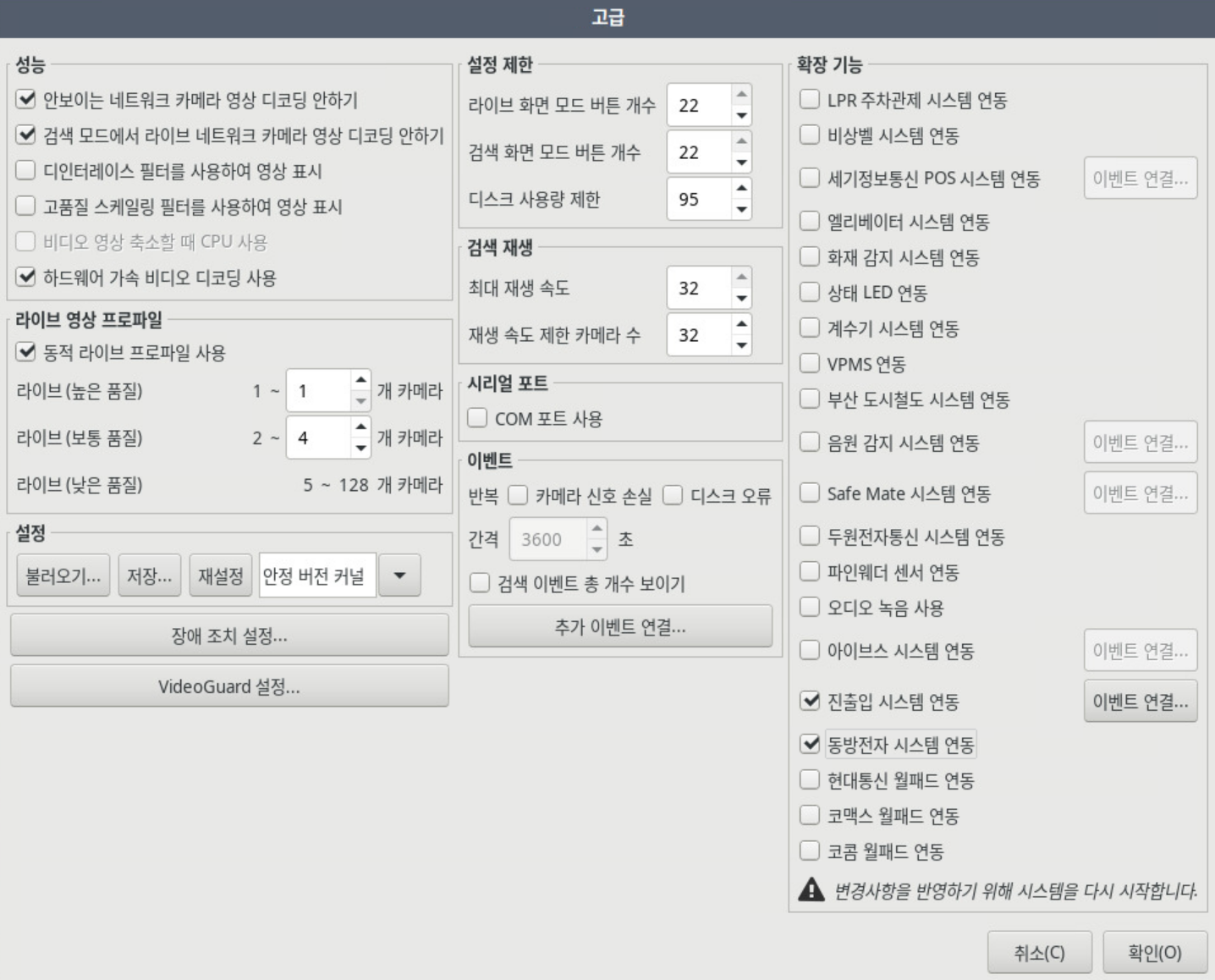

Settings - System - Advanced, enable 'Dongbang Electronics system integration'

Dongbang Electronics settings ¶

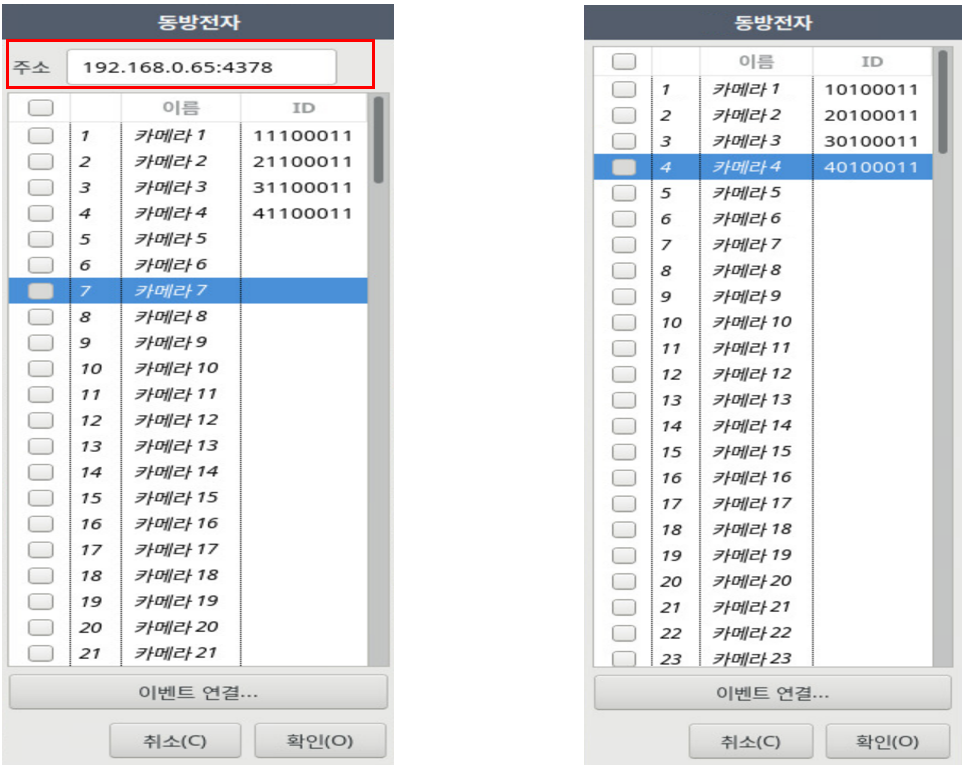

Dongbang Electronics fire detection sensor server information settings and sensor ID mapping settings ¶

Configure the server connection settings only on the VMS 1st server. From the second server onward, only mapping settings for each camera are possible.

VMS event search ¶

Search -> Event search -> select the event condition "Dongbang Electronics" -> "Apply search time" -> Search

The time the "Dongbang Electronics" event occurred, the event type, the device (camera), and the description (location and event type) are displayed.

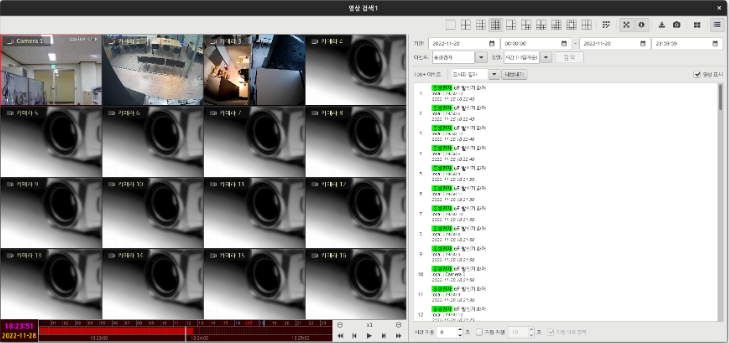

Double-clicking the event searches for that event's video.

Event log ¶

Event search ¶

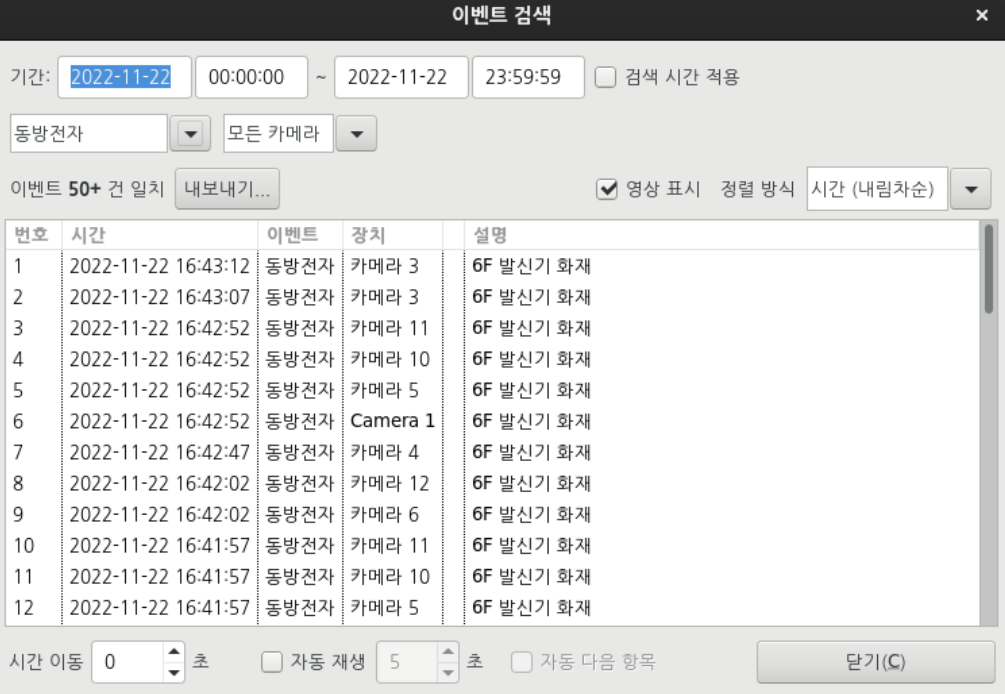

Setting event search conditions

Select the Dongbang Electronics event type and set the event search period, then search.
