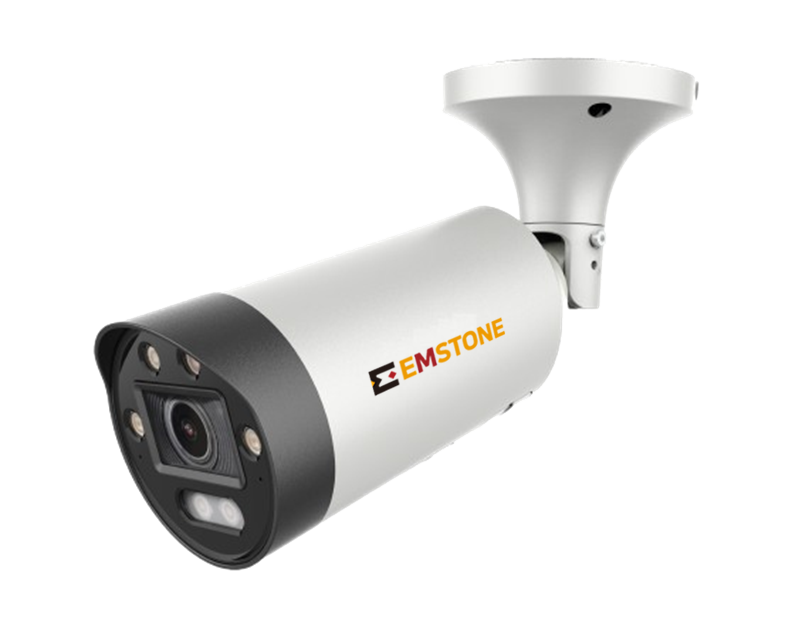

EM-IUV Pseries UHD 블릿카메라
8MP Bullet Type Network IP Camera
특징
- UHD 8Mega-pixel @30fps
- 2.8~12mm Motorized Lens Type
- 높은 효율의 H.256, H.264 압축 방식을 통한 선명한 화질
- IP67
외관도
사양
| 모델명 | EM-IUV(IR2812ZP) | ||
|---|---|---|---|
| Camera | Image Sensor | 1/1.8" 8Megapixel CMOS | |
| Max. Resolution | 3840 x 2160 pixel | ||
| Electronic Shutter Speed | 1/3 sec ~ 1/10,000sec | ||
| Min. Illumination | COLOR : 0.003 Lux@F1.0, AGC ON ,B/W : 0 Lux with light | ||
| Lens | Lens Type | Motorized vari-focal | |
| Focal Length | 2.8mm ~ 12mm | ||
| Field of View | H : 112˚ ~ 48˚ / V : 59˚ ~ 28˚ | ||
| Video | Video Compression | H.265 / H.264 | |
| Video Frame Rate | Max. 30 fps for / 8M,6M,5M,4M,1080P,720P,D1,CIF | Function | Day/Night | Auto / Day / Night |
| DNR | 2D/3D Support | ||
| BLC/HLC/WDR | Yes | ||
| White Balance | Auto/Manual | ||
| IVS | Motion detection, Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving | Network | Interface | RJ-45 (10/100 Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,IGMP,UPnP,SMTP | ||
| Interoperability | ONVIF(Profile S) | ||
| User/Host | 10 | Power | Power Supply | 12V DC/PoE | Environment | Operating Conditions | -30°C to +60°C /less than ≤ 95% RH |
| Protection | IP67 | Structure | Dimensions | Φ93.5 x 278.9mm |
| Net Weight | 1000g | ||
다운로드
| 종류 | 파일 |
|---|---|
| 카탈로그 | EM-IUV(IR2812ZP)_CATALOG_KO_20250826.pdf |
| 외관도 | EM-IUV(IR2812ZP)_외관도_20250826.png |
| 사양서 | EM-IUV(IR2812ZP)_사양서_20250826.xlsx |
| 시방서 | EM-IUV(IR2812ZP)_시방서_20250826.docx |
| 출하검사 결과 성적서 | EM-IUV(IR2812ZP)_출하검사성적서_20250826.xlsx |
| 인증서 | EM-IUV(IR2812ZP)_방송통신기자재등의적합등록필증_20250514.pdf EM-IUV(IR2812ZP)_방송통신기자재등(전자파적합성)시험성적서_20250514.pdf EM-IUV(IR2812ZP)_방송통신기자재등(유선영상정보처리기기)시험성적서_20250514.pdf |
| 소프트웨어 | EMSTONE_P_IPInstaller.zip |
| 펌웨어 | EM-IUV(IR2812ZP)_004QV056_V2.10.6.R22941.20250718.upf |
