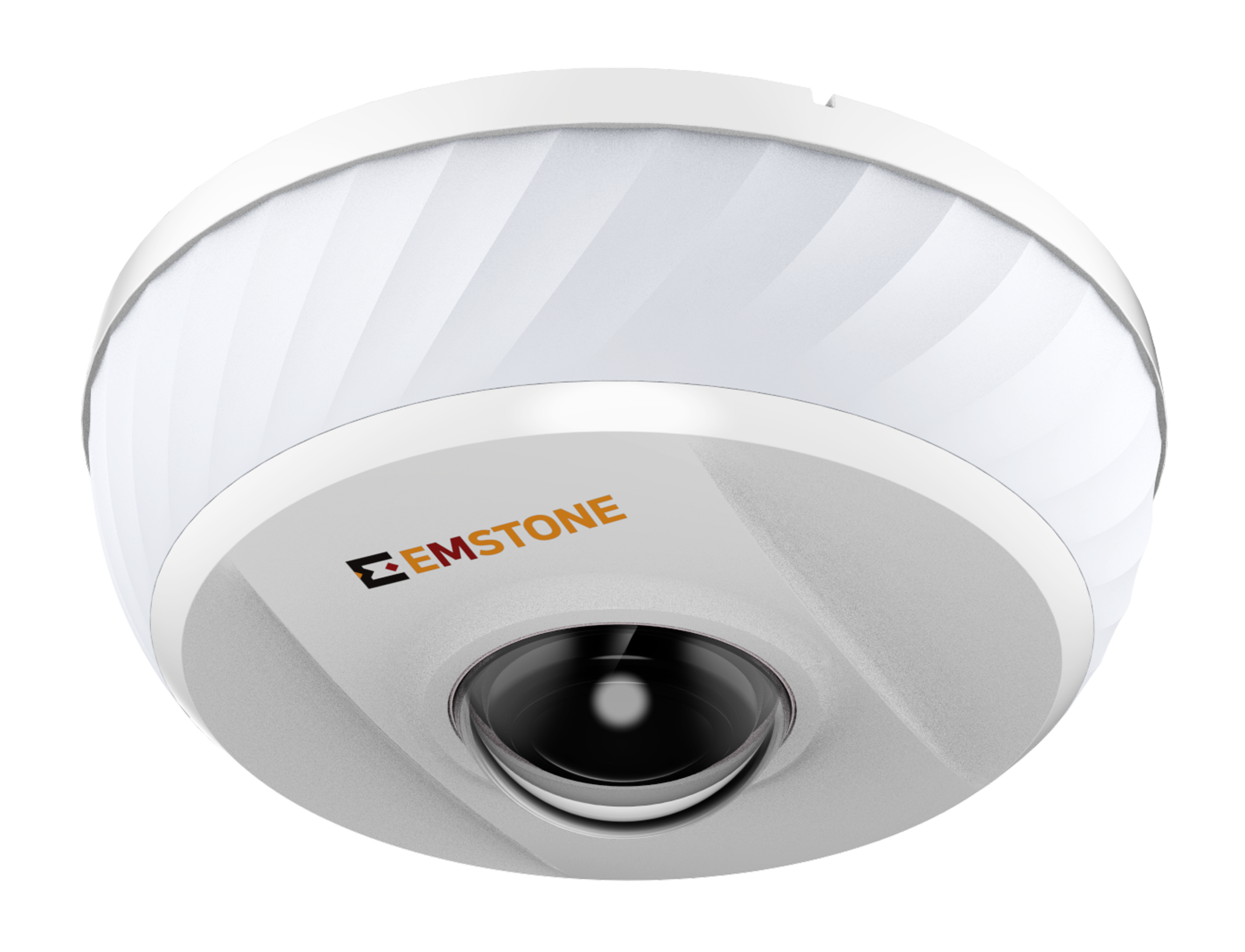

EMSTONE_D_AI 주차유도 어안카메라
EMSTONE_D_AI 12MP Fisheye Camera
특징
- SHD 12Mega-pixel 4000x3000p@30fps
- 영상분석 AI 기반으로 정확하고 신속한 주차유도
- 360˚ 전방위 고화질 모니터링 다양한 뷰(View)모드 지원
- 방수, 방진 인증 IP67 등급
외관도
사양
| 모델명 | EM-IUF(L17D) | |
|---|---|---|
| Camera | Image | 1/1.7” 12Megapixel progressive CMOS |
| Max. Resolution | 4000(H) x 3000(V) | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000s | |
| Min. Illumination | 0.01 Lux/F2.0 (Color) | |
| S/N Ratio | > 56 dB | |
| Illuminator Number | 3 (IR LEDs) | |
| Lens | Lens Type | Fixed |
| Focal Length | 1.85mm | |
| Max.Aperture | F2.0 | |
| Angle of view | Horizontal: 185 ; Vertical: 180 | |
| Parking | Parking lot detection LED color | 7 |
| Parking lot detection | 6 | |
| Smart Event | Parking lot detection | |
| Video | Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Bit Rate | Main stream : 2592x1944 (1 fps-20 fps) / 2688x1520 (1 fps-25/30 fps) Sub stream: 704x576 (1 fps-25 fps) / 704x480 (1 fps-30 fps) | |
| Resolution | 4000x3000@30fps/2432x2432@30fps/2016x2016@30fps/704x480@30fps | Function | Day/Night | Auto(ICR)/Color/B/W |
| BLC/HLC | Yes | |
| WDR | DWDR | |
| White Balance | Auto/Manual | |
| Gain control | Auto/Manual | |
| RoI | Yes (4 areas) | |
| Noise | 3DNR | |
| IVS | Intrusion, Tripwire, Heat Map, People Counting | |
| Privacy masking | Privacy masking | |
| Audio | Twoway Audio | Yes |
| Compression | G.711a; G.711Mu; G726; G.723 | |
| Network | Interface | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP,SMTP, FTP, DHCP, DNS, DDNS, PPPoE,IPv4/v6, SNMP, QoS, UPnP, NTP | |
| Interoperability | ONVIF (Profile S/Profile G),CGI | |
| Storage | FTP, Micro SD card (256 G) | |
| User/Host | 20 | Power | Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 13w | Environment | Operating Conditions | -30 C ~+45 C / ≤95% |
| Protection | IP67/IK10 | Structure | Dimensions | 75 mm x Φ170 mm |
| Net Weigt | 0.77kg (1.70lb) | |
