EMSTONE_D_AI QHD 블릿카메라

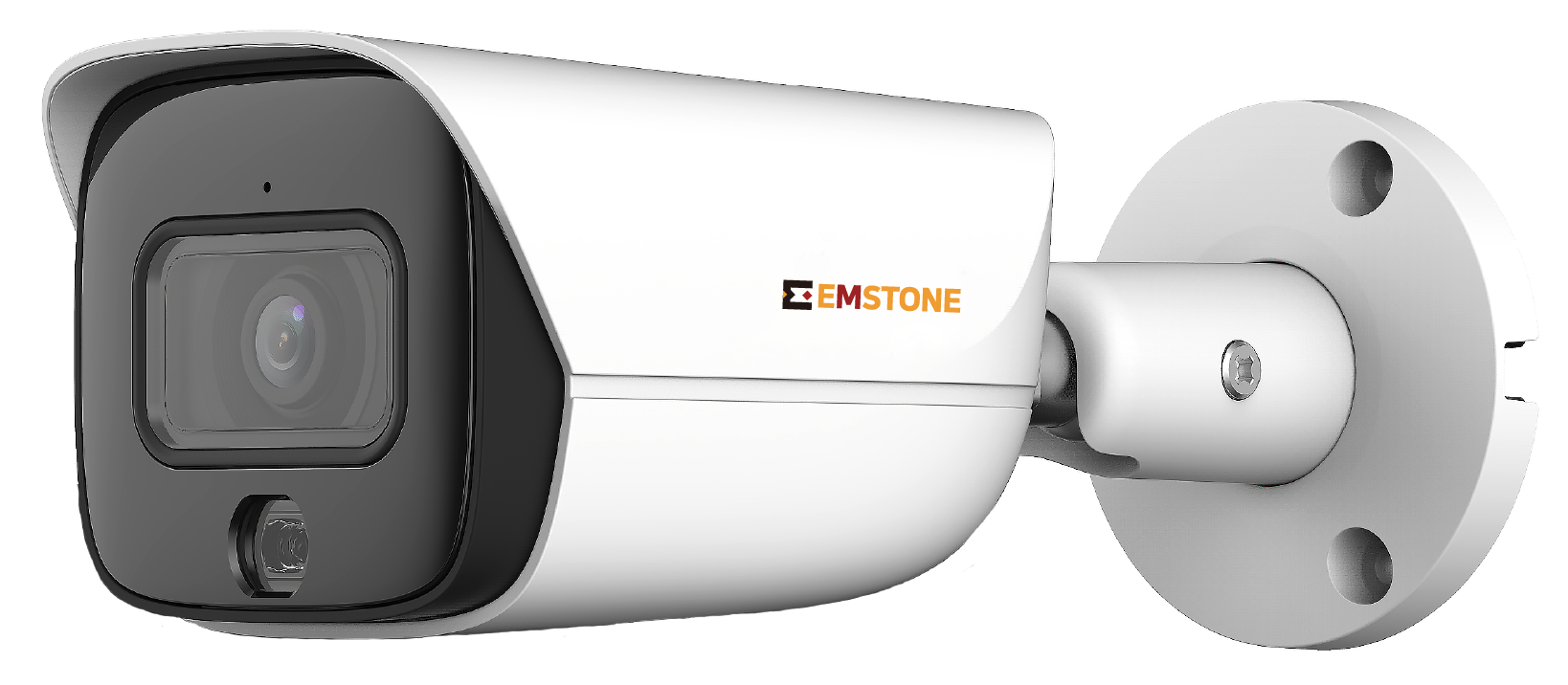

EMSTONE_D_AI 5MP Full-color Fixed-focal warm LED Bullet Type Camera
특징
- QHD 5Mega-pixel 2592x1944p@20fps
- Built-in Warm light, max illumination distance : 30m
- IVS 알고리즘 탑재로 기본적인 지능형 기능 제공
- 방수, 방진 인증 IP67 등급

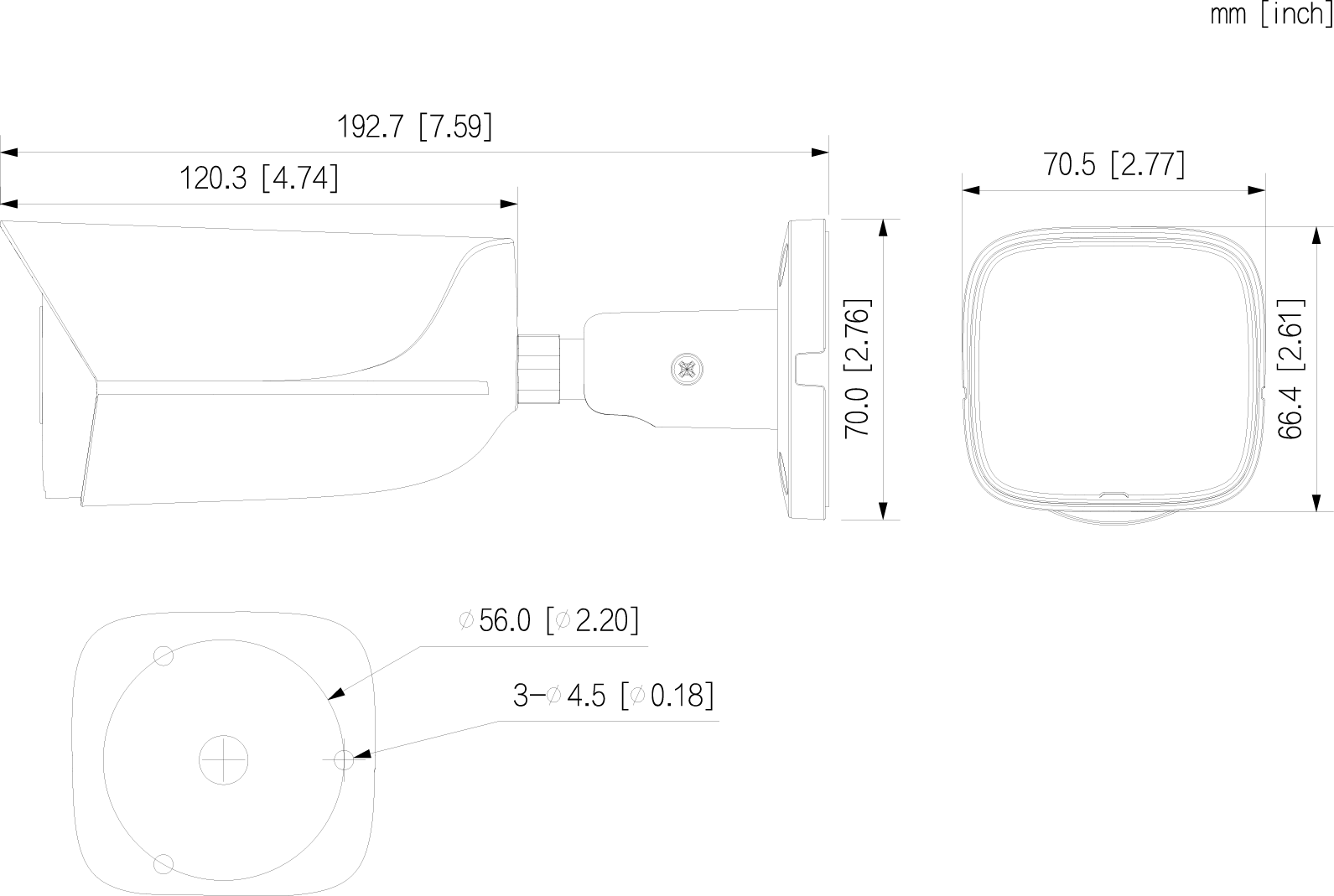

외관도
사양
| 모델명 | EM-IQV(IR36LD) | |
|---|---|---|
| Camera | Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
| Max. Resolution | 2592(H) x 1944(V) | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | |
| Min. Illumination | 0.003 Lux @ F1.0 | |
| S/N Ratio | > 56 dB | |
| Illumination Distance | 30 m (98.4 ft) (Warm light) | |
| Illuminator Number | 1 (Warm light) | |
| Lens | Lens Type | Fixed |
| Focal Length | 3.6 mm | |
| Field of View | H : 77˚, V : 56˚, D : 101˚ | |
| Video | Video Compression | H.265/H.264/H.264B/MJPEG (only supported by the sub stream)/Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 2592 × 1944 @1–20 fps 2688 × 1520 @1–25/30 fps Sub stream: 704 × 576 @1–25 fps/704 × 480 @1–30 fps Third stream: 1280 × 720@1–25/30 fps | |
| Stream Capability | 3 streams | |
| Resolution | 5M(2592×1944); 4M(2688×1520); 3M(2304×1296); 1080p(1920×1080); 1.3M(1280×960); 720p(1280×720); D1(704×576/704×480); VGA(640×480); CIF(352×288/352×240) | Function | Day/Night | Color/B/W |
| BLC/HLC | Yes | |
| WDR | 120dB | |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |
| Motion Detection | OFF/ON(4areas,rectangular) | |
| RoI | Yes (4 areas) | |
| Smart Illumination | Yes | |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) | |
| IVS | Tripwire, Intusion | Network | Interface | RJ-45 (10/100 Base-T) |
| SDK and API | Yes | |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP | |
| Interoperability | ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Genetec | |
| User/Host | 20 (Total bandwidth: 64 M) | |
| Audio | Twoway Audio | Yes |
| Compression | G.711a; G.711Mu; G726 | Power | Power Supply | 12V DC/PoE |
| Power Consumption | < 8.4W | Environment | Operating Conditions | -40˚C to +60˚C (-40˚F to +140˚F)/less than ≤ 95% RH |
| Protection | IP67 | Structure | Dimensions | 192.7mm × 70.5mm × 66.4mm |
| Net Weigt | 590g (1.3lb) | |
