EM-IQV Pseries QHD 가변 블릿카메라
5MP Bullet Type Network IP Camera
특징
- 5Mega-pixel @30fps
- 높은 효율의 H.256, H.264 압축 방식을 통한 선명한 화질
- 2.7~13.5mm 가변 줌 렌즈
- IP67

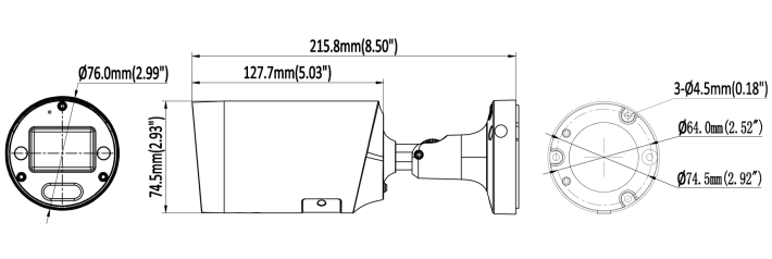

외관도
사양
| 모델명 | EM-IQV(IR2713ZP) | |
|---|---|---|
| Camera | Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
| Max. Resolution | 5 Mega pixels | |
| Electronic Shutter Speed | 1/3 sec ~ 1/10,000sec | |
| Min. Illumination | COLOR : 0.006 Lux@F1.0, AGC ON B/W : 0 Lux with light | |
| S/N Ratio | 56dB | |
| Illumination Distance | More than 70M, Wave: 850nm | |
| Lens | Lens Type | Motorized Varifocal |
| Focal Length | f = 2.7 ~ 13.5mm, F1.6 | |
| Field of View | Horizontal FOV: 110° ~ 38° Vertical FOV: 58° ~ 21° Diagonal FOV: 130° ~ 42° | |
| Video | Video Compression | H.265 / H.264 / MJPEG |
| Video Frame Rate | Max. 30 fps | |
| Stream Capability | 3 streams | |
| Resolution | Main : 5M / 4M / 1080P Second : 720P / D1 / CIF Third : CIF | |
| Max. Frame Rate | Max. 30 fps for 5M / 4M / 1080P / 720P / D1 / CIF | Function | Day/Night | Auto / Day / Night |
| DNR(2D/3D) | 2D/3D Support | |
| BLC/HLC | OFF / BLC / WDR | |
| White Balance | Auto/Manual | |
| Basic Event | Motion Detection, Abnormal Sound Detection | |
| IVS | Smart Motion Detection, Line Crossing, Area Intrusion, Region Entrance/Exit, Fast Moving | |
| Network | Interface | RJ-45 (10/100 Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,IGMP,UPnP,SMTP | |
| Interoperability | ONVIF(Profile S) | |
| User/Host | 10 | |
| Power | Power Supply | 12V DC/PoE | Environment | Operating Conditions | -40°C to +60°C /less than ≤ 95% RH |
| Protection | IP67 | Structure | Dimensions | Φ76 mm × 215.8 mm |
| Net Weight | 490g | |
