EMSTONE_D_AI QHD 블릿카메라

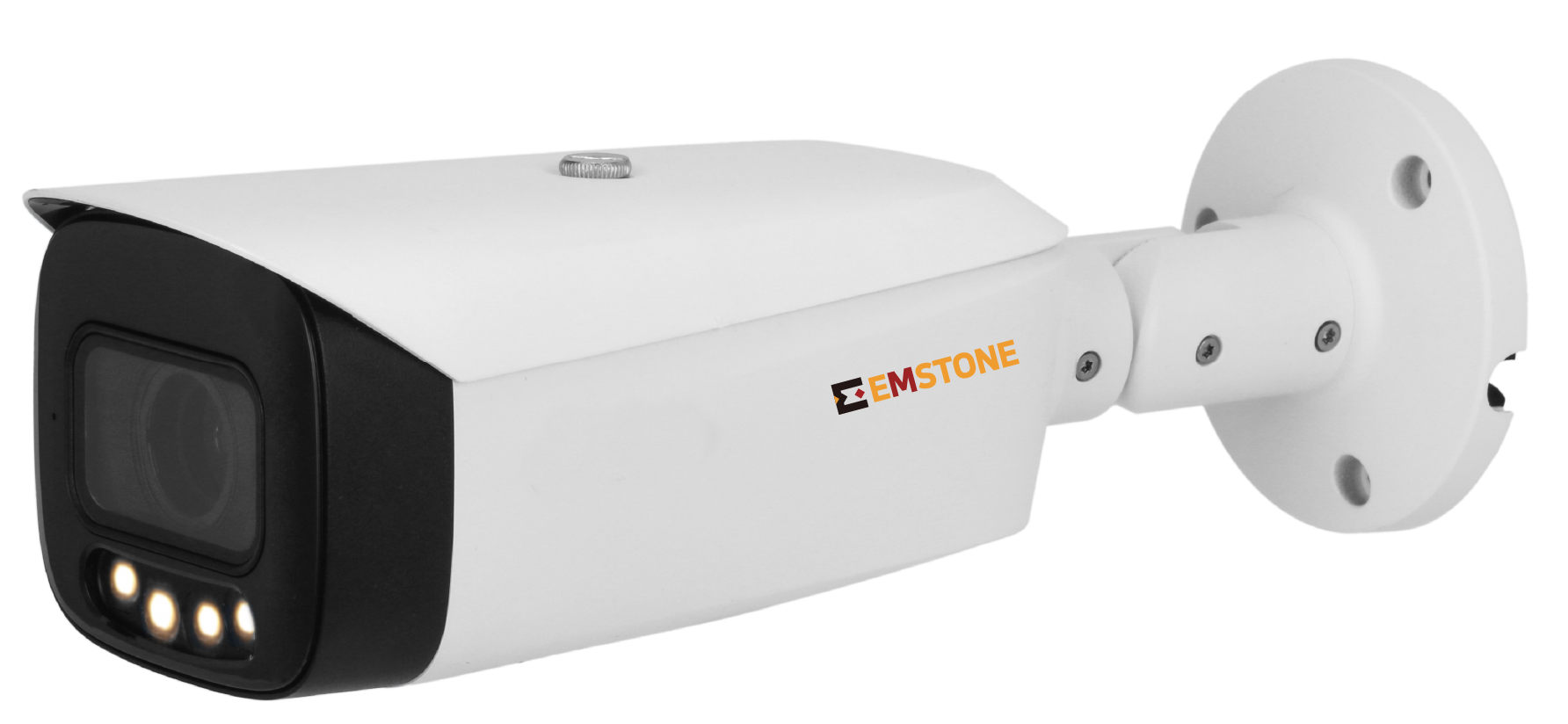

EMSTONE_D_AI 4MP Full-color Vari-focal Warm LED Bullet Type Camera
특징
QHD 4Mega-pixel 2688x1520p @30fps
Built-in Warm illuminator, and the max illumination distance is 70m
IVS 알고리즘 탑재로 지능형 영상분석 기능 제공
방수, 방진 인증 IP67 등급

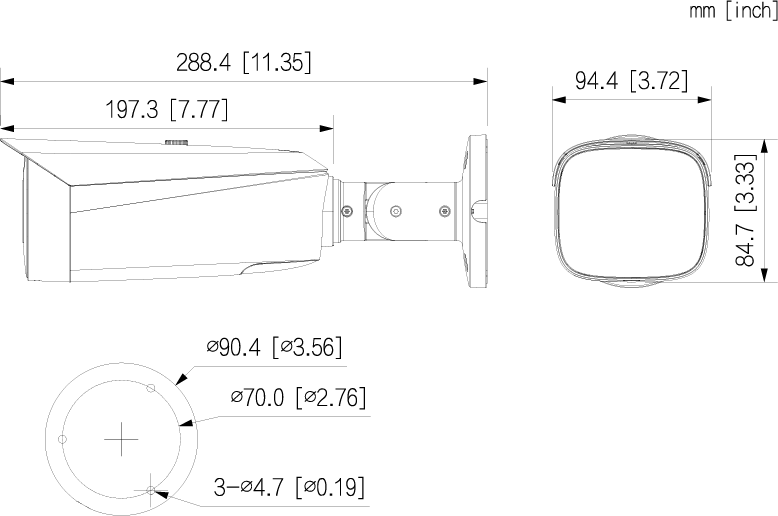

외관도
사양
| 모델명 | EM-IQV(IR2712LD) | |
|---|---|---|
| Camera | Image Sensor | 11/1.8” 4Megapixel CMOS |
| Max. Resolution | 2688(H) × 1520(V) | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | |
| Min. Illumination | 0.0005 Lux @ F1.0 | |
| S/N Ratio | >56dB | |
| Illumination Distance | 70m (229.66 ft) | |
| Illuminator Number | 4(Warm light) | |
| Lens | Lens Type | Motorized vari-focal |
| Focal Length | 2.7mm - 12mm | |
| Field of View | H : 115˚~48˚, V : 59˚~27˚, D : 142˚ ~55˚ | |
| Video | Video Compression | H.265/H.264/H.264B/MJPEG (only supported by the sub stream)/Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | |
| Stream Capability | 3 streams | |
| Resolution | 14M(2688×1520); 3M(2304×1296); 1080p(1920×1080); 1.3M(1280×960); 720p(1280×720); D1(704×576/704×480); VGA(640×480); CIF(352×288/352×240) | Function | Day/Night | Color/B/W |
| BLC/HLC | Yes | |
| WDR | 140dB | |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |
| Motion Detection | OFF/ON(4areas,rectangular) | |
| RoI | Yes (4 areas) | |
| Smart Illumination | Yes | |
| Image Rotation | 0°/90°/180°/270° | |
| IVS | Tripwire, intrusion, fast moving, loitering detection, people gathering, parking detectio | |
| Audio | Twoway Audio | Yes |
| Compression | PCM; G.711a; G.711Mu; G726; G.723 | |
| Network | Interface | RJ-45 (10/100 Base-T) |
| SDK and API | Yes | |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP | |
| Interoperability | ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; P2P | |
| User/Host | 20(Total bandwidth:80M) | Power | Power Supply | 12V DC (±30%)/PoE (802.3af)/ePoE |
| Power Consumption | Basic : 2.4 W (12 VDC) 3.4 W (PoE) Max. (H.265 + 3 streams + intelligence + LED) : 7.6 W (12 VDC); 9.3 W (PoE) | Environment | Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Protection | IP67 | Structure | Dimensions | 288.4mm × 94.4mm × 84.7mm |
| Net Weigt | 1.0kg (2.2lb) | |
