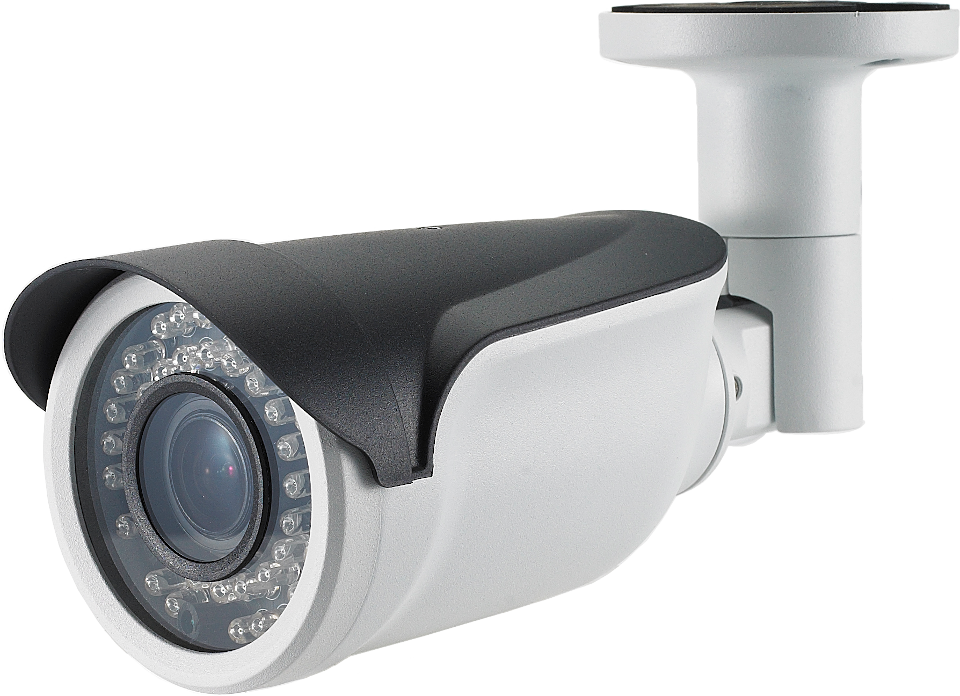

EM-IQV QHD 블릿 카메라
5MP Bullet Type Network IP Camera Series
특징
- QHD 5 메가 픽셀 2560x1920p@30fps
- SONY Progressive CMOS Sensor
- PoE(Power over Ethernet) 지원
- ONVIF / RTSP 표준 프로토콜 지원 (ONVIF Profile S)
- H.265, H.264 압축 방식을 통한 선명한 화질 구현

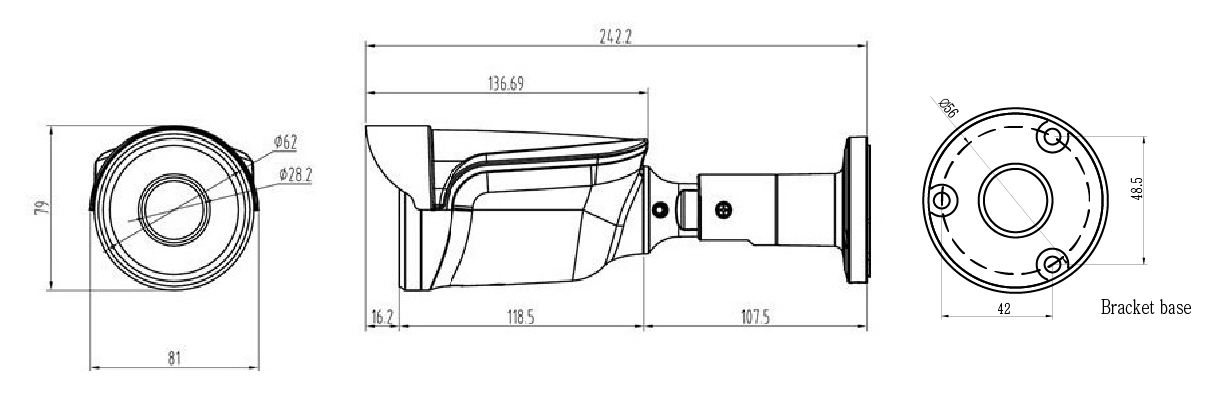

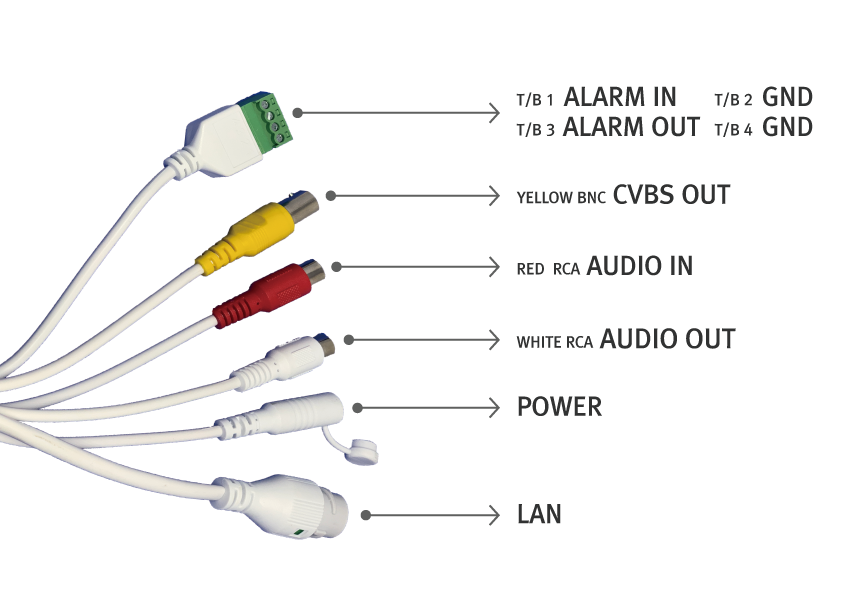

외관도 / 케이블
인증
- EM-IQV(IR2812Z)
- 공공기관용 IP카메라 보안 성능품질 Ver.1 (TTA-V-23-497)
- 공공기관용 IP카메라 보안 성능품질 Ver.1 (TTA-V-23-497)
사양
모델명 | EM-IQV(IRF36) | EM-IQV(IR2812Z) | |
---|---|---|---|
Lens | Focal Length | 3.6mm | 2.8~12mm |
FOV | H : 87.4˚ V : 47˚ | H : 100˚(wide)~30.8˚(tele) V : 64.5˚(wide)~23.3˚(tele) | |
Focus | Fixed | Motorized / Auto, Manual | |
Image | Image Sensor | Sony Starvis 5.69MP Image Sensor | |
Size | 1/2.8 inch | ||
Scan System | Progressive Scan | ||
Video Signal to Noise | >50dB | ||
Minimum Illumination | 0.02 lux(Color), 0 lux(BW, IR on) | ||
Video | Compress Format | H.265 / H.264 / MJPEG | |
Resolution | 2560x1920 / 2560x1600 / 2560x1440 / 2048x1536 / 1600x1200 / 1920×1080 / 1280×1024 / 1280×960 / 1280×720 / 1024x768 / 854x480 / 640×480 / 640x360 / 320×240 | ||
Max. Frame Rate | 30fps @ All Resolutions | ||
Streaming | Triple Stream (Stream 1,2,3), RTP/RTSP, UnicastRTP, Multicast RTP | ||
Function | Day & Night | Auto / Day(Color) / Night(BW) | |
Privacy Area | Area On/Off (16 Zone) | ||
Motion Detection | 432 Zone (On/Off, 1~5Step) | ||
WDR | DWDR (1~3 Step) | ||
DNR | Support | ||
Defog | Support | ||
HCL | Support | ||
LDC | Support | ||
Ext. Video | Not Support | ||
Elec. Shutter | Auto(1/30~1/30000), Suppress Rolling, Manual | ||
White Balance | Auto / Indoor / Outdoor / Fluorescent | ||
IR LED | IR LEDs | 42pcs LEDs | |
Visible Distance | Max 40M | ||
Audio | Format | G.711 u-law | |
Streaming | N/A | Two way | |
Event | Sensor In | 1 port | |
Alarm Out | 1 port | ||
Network | Interface | RJ45 10/100 Base-T | |
Protocol | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS | ||
ONVIF | Support | ||
Simultaneous Access | Max. 10 users | ||
Power Supply / Current | DC12V 750mA / PoE | ||
Operating Temp / Humidity | -10℃ ~ +40℃ / 0% ~ 90% | ||
Dimension | Φ81mm X Φ79mm X 242.2mm | ||
Weight | Approx. 800g |
