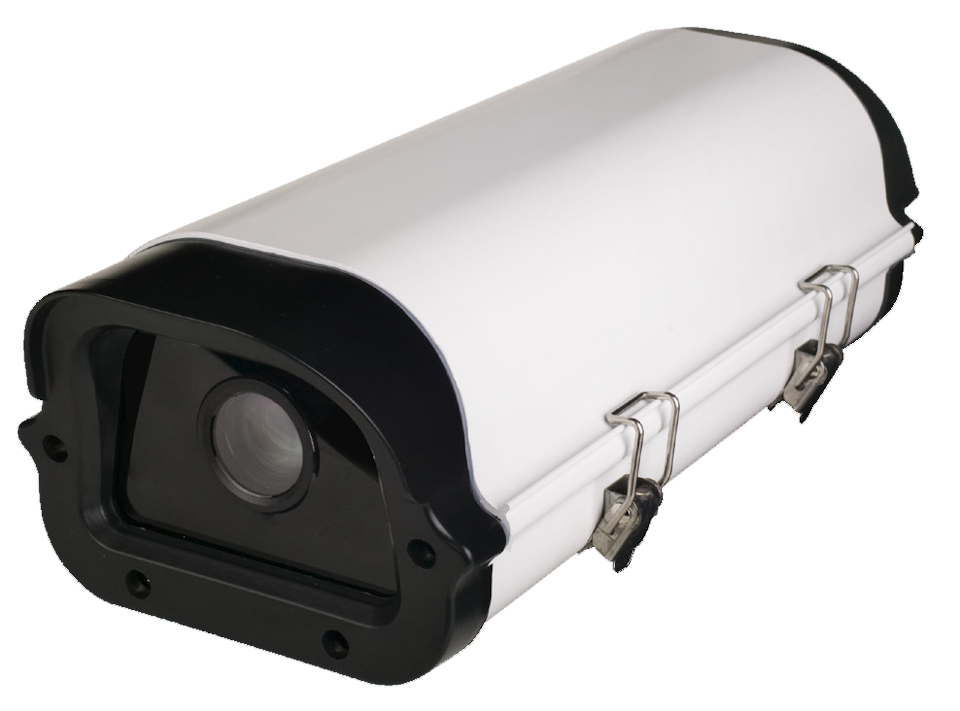

EM-IQE QHD 하우징 카메라

5MP Housing Type Network IP Camera Series

EM-IQE(N2812Z)
EM-IQE(IR2812Z) / EM-IQE(IR0550Z)

특징

  • QHD 5 메가 픽셀 2560x1920p@30fps
  • SONY Progressive CMOS Sensor
  • PoE(Power over Ethernet) 지원
  • ONVIF / RTSP 표준 프로토콜 지원 (ONVIF Profile S)
  • H.265, H.264 압축 방식을 통한 선명한 화질 구현

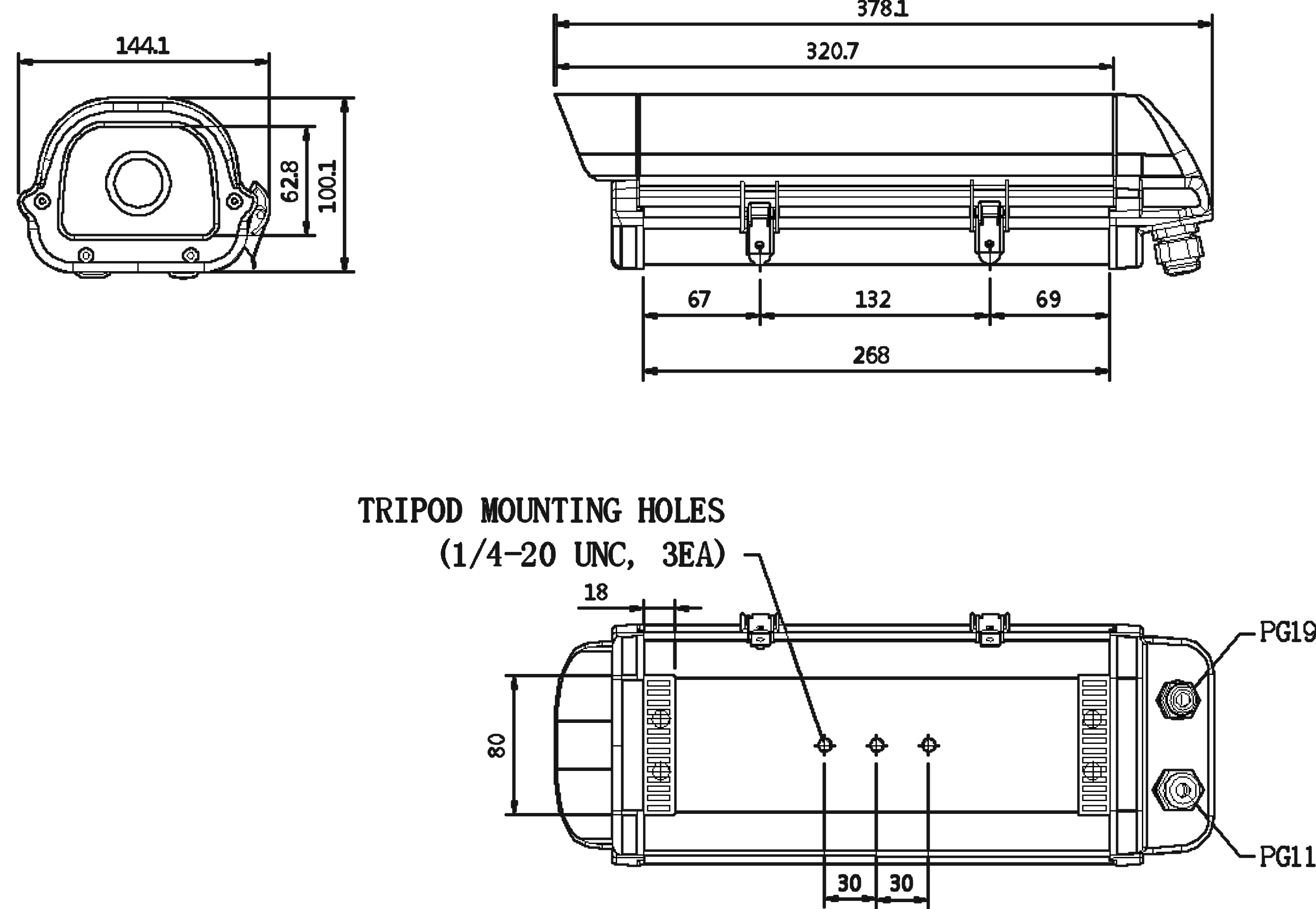

외관도

EM-IQE(N2812Z) / EM-IQE(IR2812Z) / EM-IQE(IR0550Z)

사양

모델명EM-IQE(N2812Z)EM-IQE(IR2812Z)EM-IQE(IR0550Z)
LensFocal Length2.8~12mm5.0~50mm
FOVH : 100˚(wide)~30.8˚(tele)
V : 64.5˚(wide)~23.3˚(tele)
H : 50.9˚(wide)~7.6˚(tele)
V : 27.8˚(wide)~4.3˚(tele)
FocusMotorized / Auto, Manual
ImageImage SensorSony Starvis 5.69MP Image Sensor
Size1/2.8 inch
Scan SystemProgressive Scan
Video Signal
to Noise
>50dB
Minimum
Illumination
0.02 lux0.02 lux(Color), 0 lux(BW, IR on)
VideoCompress
Format
H.265 / H.264 / MJPEG
Resolution2560x1920 / 2560x1600 / 2560x1440 / 2048x1536 / 1600x1200 / 1920×1080 / 1280×1024 / 1280×960 / 1280×720 / 1024x768 / 854x480 / 640×480 / 640x360 / 320×240
Max.
Frame Rate
30fps @ All Resolutions
StreamingTriple Stream (Stream 1,2,3), RTP/RTSP, UnicastRTP, Multicast RTP
FunctionDay & NightAuto / Day(Color) / Night(BW)
Privacy AreaArea On/Off (16 Zone)
Motion
Detection
432 Zone (On/Off, 1~5Step)
WDRDWDR (1~3 Step)
DNRSupport
DefogSupport
HCLSupport
LDCSupport
Ext. VideoNot Support
Elec. ShutterAuto(1/30~1/30000), Suppress Rolling, Manual
White BalanceAuto / Indoor / Outdoor / Fluorescent
IR LEDIR LEDsN/A4pcs High LEDs
Visible
Distance
Max 40M
AudioFormatG.711 u-law
StreamingTwo way
EventSensor In1 port
Alarm Out1 port
NetworkInterfaceRJ45 10/100 Base-T
ProtocolTCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS
ONVIFSupport
Simultaneous
Access
Max. 10 users
Power Supply / CurrentDC12V 750mA / PoE
Operating Temp / Humidity-10℃ ~ +40℃ / 0% ~ 90%
Dimension144mm X 100mm X 378mm
WeightApprox. 1100g

다운로드

종류파일
카탈로그IQE_카탈로그_20200313.pdf
사양서IQE_사양서_20200313.xlsx
시방서IQE(N2812Z)_시방서_20200313.hwp
IQE(IR2812Z)_시방서_20200313.hwp
IQE(IR0550Z)_시방서_20200313.hwp
출하검사 결과 성적서IQE(N2812Z)_출하검사성적서_20200313.xls
IQE(IR2812Z)_출하검사성적서_20200313.xls
IQE(IR0550Z)_출하검사성적서_20200313.xls
인증서IQE_방송통신기자재등의적합등록필증_20200114.pdf
매뉴얼EM-IHD_IP_Camera_Quick_Manual_설명서_20200313.pdf
EM-IHD_IP_카메라_사용자매뉴얼_20200313.pdf
EM-IHD_IP_Camera_User_Manual_20200313.pdf
소프트웨어EM-IHD_IP_Manager_1.4.8.exe
