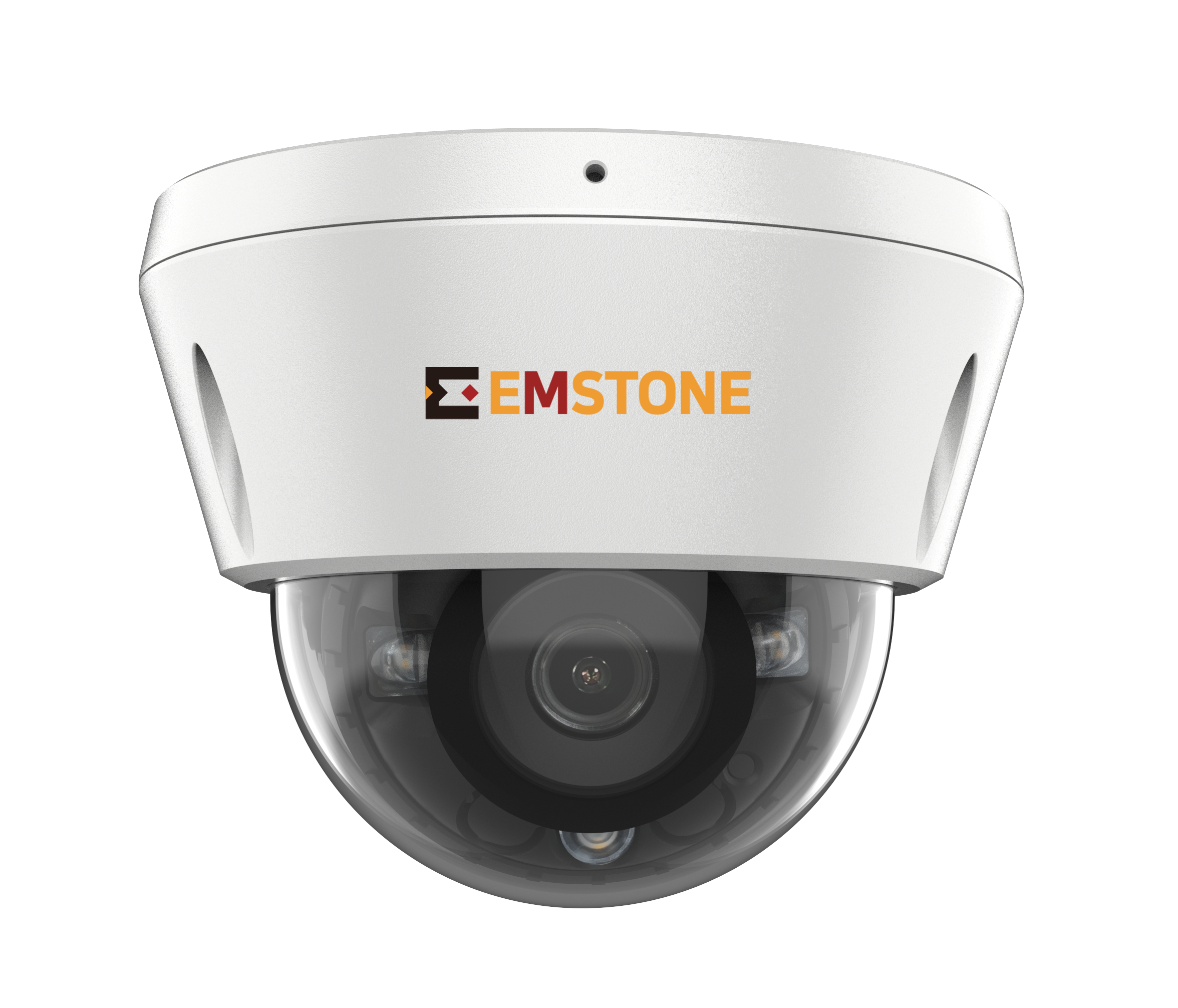

EM-IQD(IR28P) QHD 돔 카메라
5MP Dome Type Network IP Camera
특징
- QHD 5Mega-pixel @30fps
- 2.8mm Fixed Lens Type
- 높은 효율의 H.256, H.264 압축 방식을 통한 선명한 화질
- IP67, IK10
외관도
사양
| 모델명 | EM-IQD(IR28P) | |
|---|---|---|
| Camera | Image Sensor | 1/2.7" 5M Progressive Scan CMOS |
| Max. Resolution | 5Mega pixels, 2880x1620 | |
| Electronic Shutter Speed | 1/3 sec ~ 1/10,000sec | |
| Min. Illumination | COLOR : 0.006 Lux@F1.6, AGC ON ,B/W : 0 Lux with light | |
| S/N Ratio | >56dB | |
| Illumination Distance | More than 30M, Wave: 850nm | |
| Illuminator Number | IR LED(1W) 3EA, WARM LED(1W) 3EA | |
| Lens | Lens Type | Fixed |
| Focal Length | 2.8 mm | |
| Field of View | H : 102˚ / V : 56˚ / D : 121˚ | |
| Video | Video Compression | H.265 / H.264 / MJPEG |
| Video Frame Rate | Max. 30 fps | |
| Stream Capability | 3 streams | |
| Resolution | 5M(2880x1620)/4M(2560x1440)/1080p(1920x1080)/720p(1280x720)/D1(704x480)/CIF(352x240) | Function | Day/Night | Auto(CDS) / Day / Night(ICR) |
| DNR(2D/3D) | OFF/Level Adjustment(1~5) | |
| BLC/HLC | Yes | |
| WDR | 120dB | |
| White Balance | Auto/Manual | |
| Motion Detection | Yes, Support alarm triggering by specified target types (human and vehicle) | |
| ROI | Yes | |
| Smart Illumination | Yes | |
| Image Rotation | 0˚/90˚/180˚/270˚, Up-and-down inversion, left-and-right inversion | |
| IVS | Line crossing detection, Area intrusion ，Region Entrance，Region Exiting (support alarm triggering by specified target types (human and vehicle)), Fast Moving, Video Shelter | Network | Interface | RJ-45 (10/100 Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour | |
| Interoperability | ONVIF(Profile S) | |
| User/Host | 10 | Power | Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Max. 10W | Environment | Operating Conditions | -30°C to +60°C /less than ≤ 95% RH |
| Protection | IP67, IK10 | Structure | Dimensions | Φ112 x 87.5mm |
| Net Weight | 497g | |
