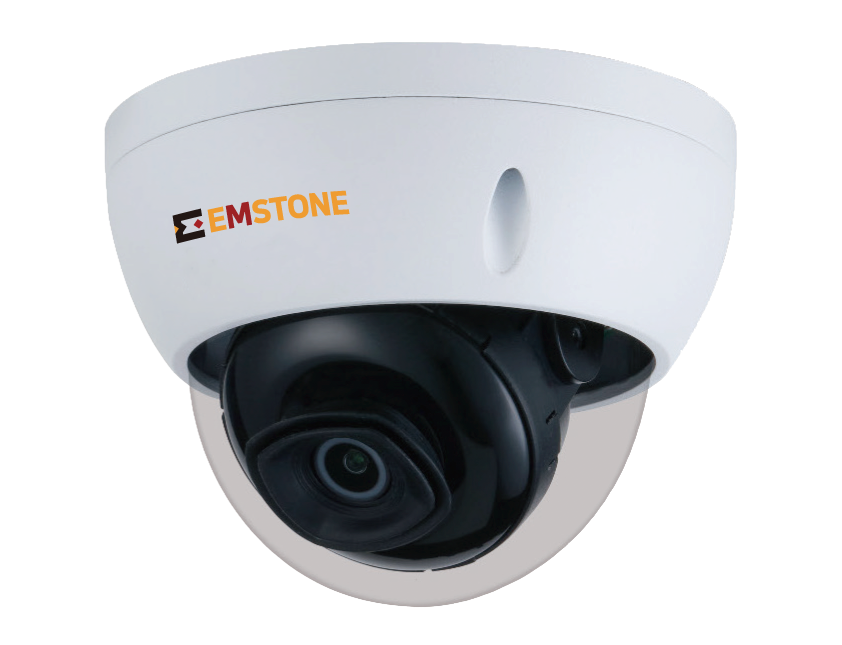

EMSTONE_D_AI QHD 돔카메라
EMSTONE_D_AI 5MP Dome Type Camera
특징
- QHD 5Mega-pixel 2592x1944p@20fps
- IVS 알고리즘 탑재로 기본적인 지능형기능 제공
- Starlight 기술로 저조도 환경에서도 선명한 영상제공
- 방수, 방진 인증 IP67 등급
외관도
사양
| 모델명 | EM-IQD(IR28D) | |
|---|---|---|
| Camera | Image | 1/2.7” 5Megapixel progressive CMOS |
| Max. Resolution | 2592(H) x 1944(V) | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000s | |
| Min. Illumination | 0.008 Lux @ F1.6 | |
| S/N Ratio | > 56 dB | |
| Illumination Distance | 30 m (98.43 ft) | |
| Illuminator Number | 3 (IR LED) | |
| Lens | Lens Type | Fixed |
| Focal Length | 2.8 mm | |
| Field of View | H : 103˚, V : 71˚, D : 132˚ | |
| Video | Video Compression | H.265/H.264/H.264B/MJPEG(only supported by the substream)/ Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream : 2592x1944 (1 fps-20 fps) / 2688x1520 (1 fps-25/30 fps) Sub stream: 704x576 (1 fps-25 fps) / 704x480 (1 fps-30 fps) | |
| Stream Capability | 2 streams | |
| Resolution | 2592x1944(2592x1944)/2688x1520(2688x1520)/3M(2048x1536)/2304x1296(2304x1296)/1080p(1920x1080)/ 1.3M (1280 x 960)/720p(1280x720)/D1(704x 576/704x480)/VGA(640x480)/CIF(352x288/352x240) | Function | Day/Night | Auto(ICR)/Color/B/W |
| BLC/HLC | Yes | |
| WDR | 120dB | |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |
| Motion Detection | OFF/ON(4areas,rectangular) | |
| RoI | Yes (4 areas) | |
| Smart Illumination | Yes | |
| Image Rotation | 0˚/90˚/180˚/270˚(Supports 90˚/270˚ with 2592x1944 resolution and lower.) | |
| IVS | Intrusion, tripwire(the two functions support the classification and accurate detection of vehicle and human) | Network | Interface | RJ-45 (10/100 Base-T) |
| SDK and API | Yes | |
| Protocol | IPv4/ IPv6/ HTTP/ TCP/ UDP/ ARP/ RTP / RTSP/ RTCP/ RTMP/ SMTP/ FTP/ SFTP/ DHCP/ DDNS/ DNS/ QoS/ UPnP/ NTP/ Multicast/ ICMP/ IGMP/ NFS/ PPPoE/ Bonjour | |
| Interoperability | ONVIF(Profile S/Profile G/Profile T)/CGI/ P2P/ Milestone/ Genetec | |
| User/Host | 20 | Power | Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.1W | Environment | Operating Conditions | -40˚C to +60˚C (-40˚F to +140˚F)/less than ≤ 95% RH |
| Protection | IP67, IK10 | Structure | Dimensions | 81mm x Φ109.9mm (3.19" x Φ4.33") |
| Net Weigt | 0.350 kg (0.77 lb) | |
