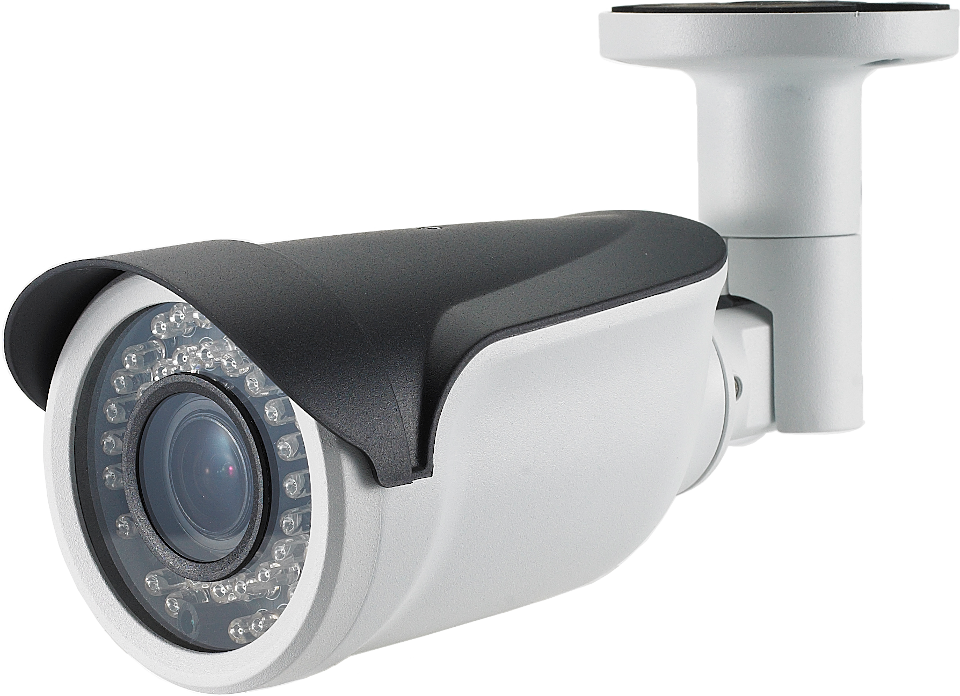

EM-IHV FullHD 블릿 카메라

2MP Bullet Type Network IP Camera Series

EM-IHV(IRF36) / EM-IHV(IR2812Z)

특징

  • FullHD 2 메가 픽셀 1920x1080p@30fps
  • SONY Progressive CMOS Sensor
  • PoE(Power over Ethernet) 지원
  • ONVIF / RTSP 표준 프로토콜 지원 (ONVIF Profile S)
  • H.264 압축 방식을 통한 선명한 화질 구현

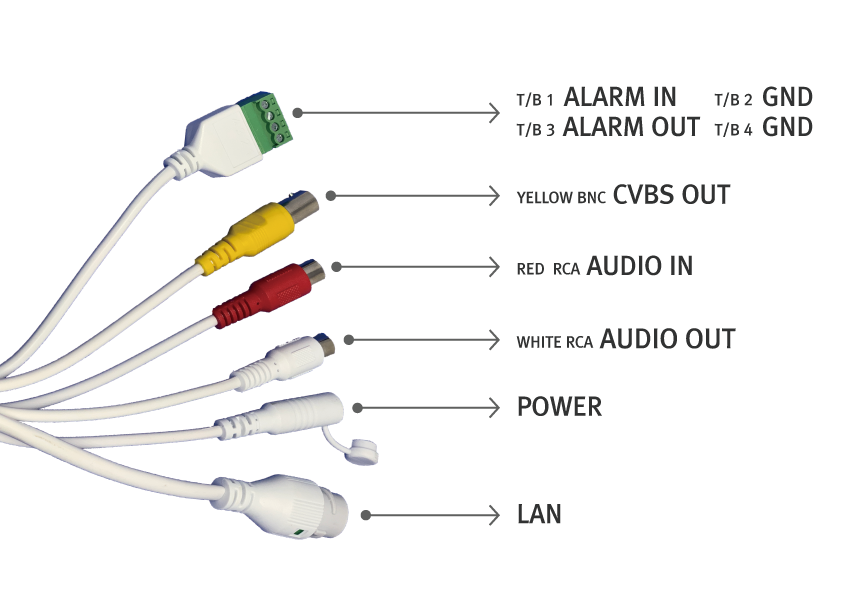

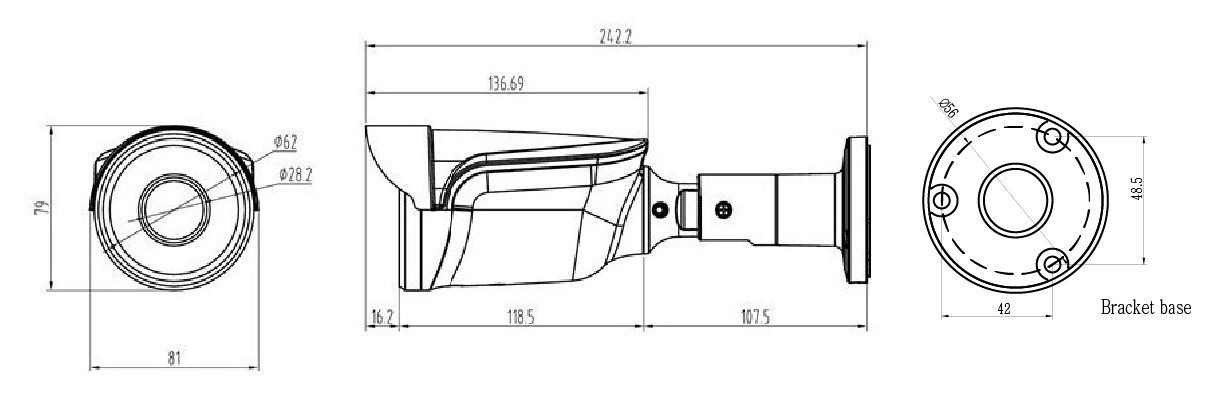

외관도 / 케이블

EM-IHV(IRF36) / EM-IHV(IR2812Z)

사양

모델명EM-IHV(IRF36)EM-IHV(IR2812Z)
LensFocal Length3.6mm2.8~12mm
FOVH : 87.4˚
V : 47˚
H : 100˚(wide)~30.8˚(tele)
V : 64.5˚(wide)~23.3˚(tele)
FocusFixedMotorized / Auto, Manual
ImageImage SensorSony Starvis 2MP Image Sensor
Size1/2.8 inch
Scan SystemProgressive Scan
Video Signal
to Noise
>50dB
Minimum
Illumination
0.02 lux(Color), 0 lux(BW, IR on)
VideoCompress
Format
H.264 / MJPEG
Resolution1920×1080 / 1280×1024 / 1280×960 / 1280×720 / 640×480 / 320×240
Max.
Frame Rate
30fps @ All Resolutions
StreamingTriple Stream (Stream 1,2,3), RTP/RTSP, UnicastRTP, Multicast RTP
FunctionDay & NightAuto / Day(Color) / Night(BW)
Privacy AreaArea On/Off (16 Zone)
Motion
Detection
432 Zone (On/Off, 1~5Step)
WDRDWDR (1~3 Step)
DNRSupport
DefogSupport
HCLSupport
LDCSupport
Ext. VideoNot Support
Elec. ShutterAuto(1/30~1/30000), Suppress Rolling, Manual
White BalanceAuto / Indoor / Outdoor / Fluorescent
IR LEDIR LEDs42pcs LEDs
Visible
Distance
Max 40M
AudioFormatG.711 u-law
StreamingTwo way
EventSensor In1 port
Alarm Out1 port
NetworkInterfaceRJ45 10/100 Base-T
ProtocolTCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS
ONVIFSupport
Simultaneous
Access
Max. 10 users
Power Supply / CurrentDC12V 750mA / PoE
Operating Temp / Humidity-10℃ ~ +40℃ / 0% ~ 90%
DimensionΦ81mm X Φ79mm X 226mm
WeightApprox. 800g

다운로드

종류파일
카탈로그IHV_카탈로그_20200313.pdf
사양서IHV_사양서_20200313.xlsx
시방서IHV(IRF36)_시방서_20200313.hwp
IHV(IR2812Z)_시방서_20200313.hwp
출하검사 결과 성적서IHV(IRF36)_출하검사성적서_20200313.xls
IHV(IR2812Z)_출하검사성적서_20200313.xls
인증서IHV_방송통신기자재등의적합등록필증_20191030.pdf
매뉴얼EM-IHD_IP_Camera_Quick_Manual_설명서_20200313.pdf
EM-IHD_IP_카메라_사용자매뉴얼_20200313.pdf
EM-IHD_IP_Camera_User_Manual_20200313.pdf
소프트웨어EM-IHD_IP_Manager_1.4.8.exe
