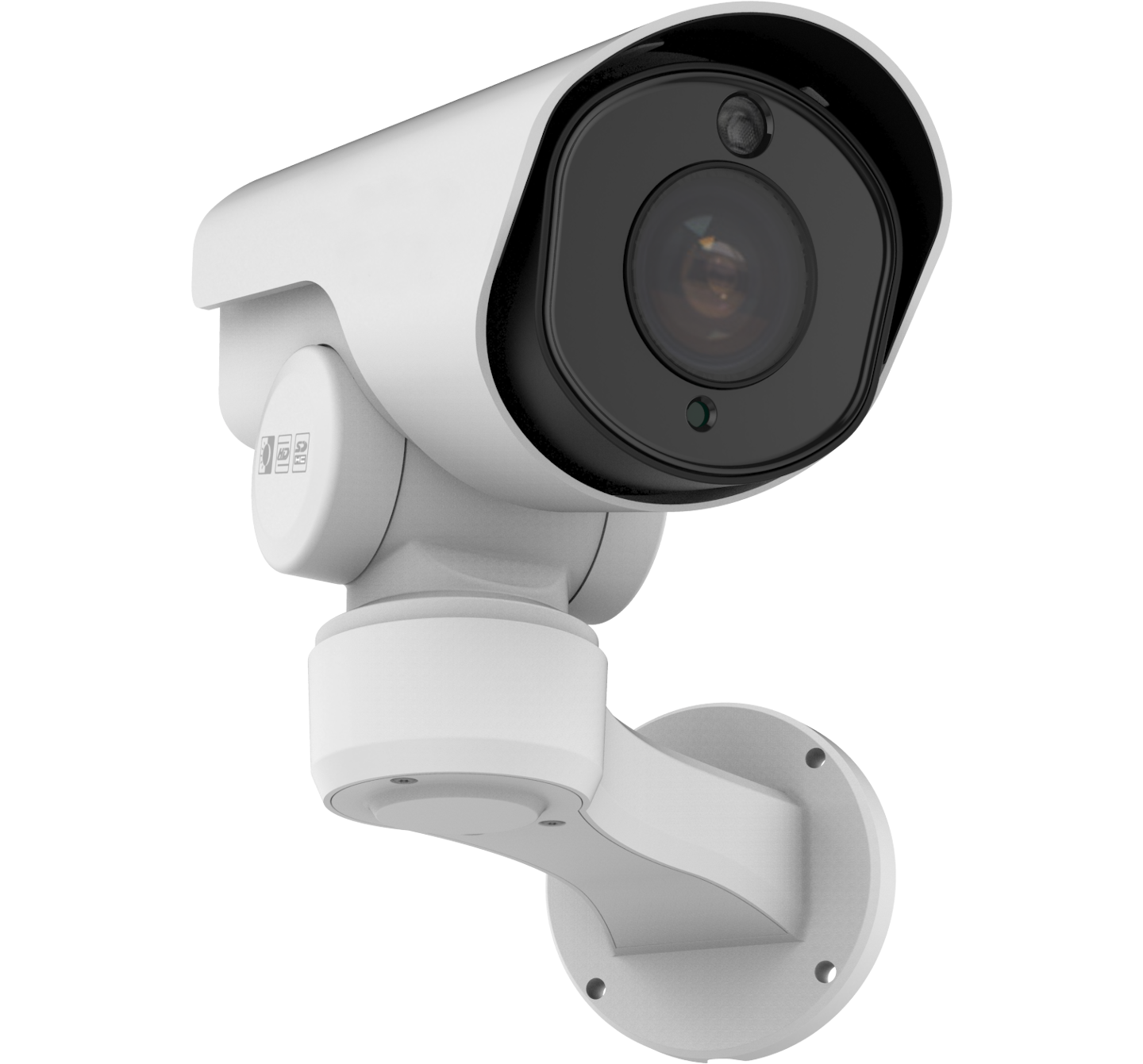

EM-IHP PTZ 블릿 카메라

2MP PTZ Bullet Type Network IP Camera Series

EM-IHP(IR12x) / EM-IHP(IR12xP)

특징

  • FullHD 2 메가 픽셀 1920x1080p@30fps
  • SONY Progressive CMOS Sensor
  • PoE(Power over Ethernet) 지원
  • ONVIF / RTSP 표준 프로토콜 지원 (ONVIF Profile S)
  • H.265 / H.264 압축 방식을 통한 선명한 화질 구현

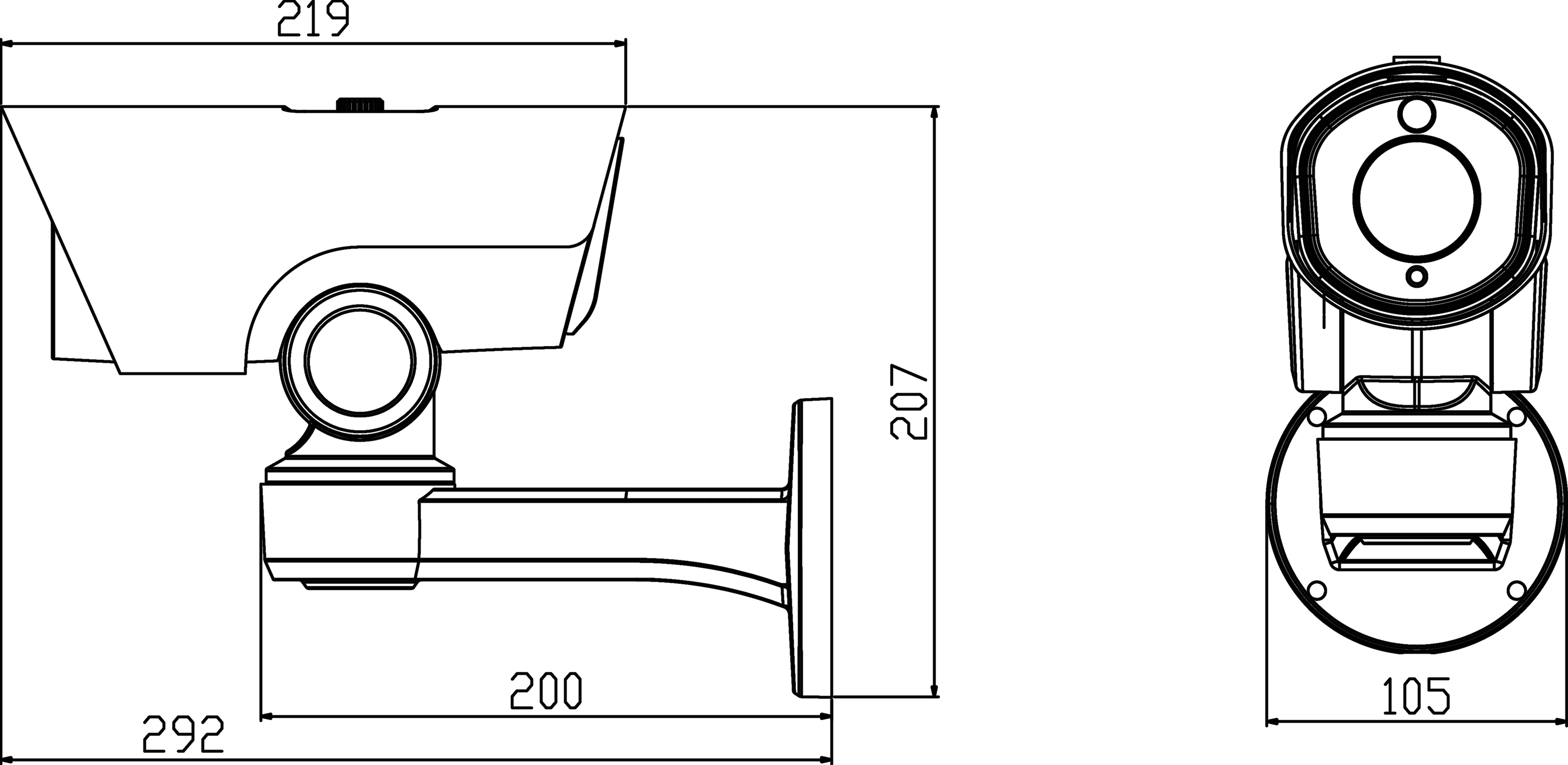

외관도

EM-IHP(IR12x) / EM-IHP(IR12xP)

사양

모델명EM-IHP(IR12x)EM-IHP(IR12xP)
LensFocal Length5.3~64mm (Motorized)
FOVH : 66.5˚(wide)~5.8˚(tele) / V : 33.7˚(wide)~2.8˚(tele)
FocusMotorized / Auto, Manual
ImageImage SensorSony 2MP Image Sensor
Size1/2.8 inch
Scan SystemProgressive Scan
Video Signal
to Noise
>50dB
Minimum
Illumination
0.002 lux(Color), 0 lux(BW, IR on)
VideoCompress
Format
H.265+ / H.265(HEVC) / H.264+ / H.264 / MJPEG
Resolution1920×1080 / 1280×960 / 1280×720 / 704x576
Max.
Frame Rate
30fps @ All Resolutions
StreamingTriple Stream (Stream 1,2,3), RTP/RTSP, UnicastRTP, Multicast RTP
PTZPan Radius360˚ endless
Pan SpeedPan manual speed : 0.2˚~60˚/s, Pan preset speed : 100˚/s
Tilt Radius-45˚~30˚
Tilt SpeedTilt manual speed : 0.2˚~30˚/s, Tilt preset speed : 60˚/s
Proportional
Zoom
Support
Preset255
Patrol8 Patrol, 48 preset can be saved
PTZ position
Indication
Support
FunctionDay & NightAuto / Day(Color) / Night(BW)
Privacy AreaArea On/Off (16 Zone)
Motion
Detection
432 Zone (On/Off, 1~5Step)
WDRDWDR (1~3 Step)
DNRSupport
DefogSupport
HCLSupport
LDCSupport
Ext. VideoNot Support
Elec. ShutterAuto(1/5~1/100000), Manual
White BalanceAuto / Indoor / Outdoor
IR LEDIR LEDs1pcs W-LEDs / 4pcs IR LEDs
Visible
Distance
Max 100M
AudioFormatG.711 u-law
StreamingTwo way
EventSensor In1 port-
Alarm Out1 port-
NetworkInterfaceRJ45 10/100 Base-T
ProtocolTCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS
ONVIFSupport
Simultaneous
Access
Max. 9 users
Power Supply / CurrentDC12V 2ADC12V 2A / PoE
Operating Temp / Humidity-30℃ ~ +60℃ / 0% ~ 90%
ProtectionIP66
Dimension291mm X 207mm X 95mm
WeightApprox. 2000g

다운로드

종류파일
카탈로그IHP_CATALOG_KO_20230110.pdf
사양서IHP_사양서_20220615.xlsx
시방서IHP(IR12x)_시방서_20220729.hwp
IHP(IR12xP)_시방서_20220729.hwp
출하검사 결과 성적서IHP(IR12x)_출하검사성적서_20220615.xls
IHP(IR12xP)_출하검사성적서_20220615.xls
인증서IHP_방송통신기자재등의적합등록필증_20191210.pdf
IHP_방송통신기자재등(전자파적합성)시험성적서_20190909.pdf
IHP_방송통신기자재등(유선-영상정보처리기기)시험성적서_20190909.pdf
소프트웨어EM-IHP_Smart_Tools_2.3.0.3_Setup.zip
