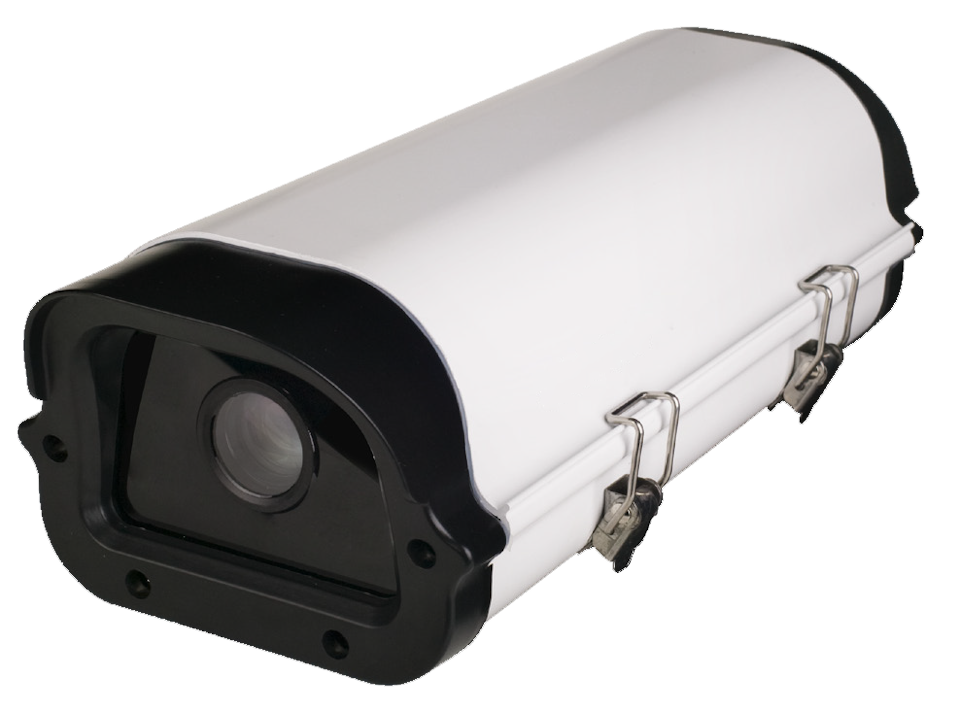

EM-IHE FullHD 하우징 카메라
2MP Housing Type Network IP Camera Series
특징
- FullHD 2 메가 픽셀 1920x1080p@30fps
- SONY Progressive CMOS Sensor
- PoE(Power over Ethernet) 지원
- ONVIF / RTSP 표준 프로토콜 지원 (ONVIF Profile S)
- H.264 압축 방식을 통한 선명한 화질 구현

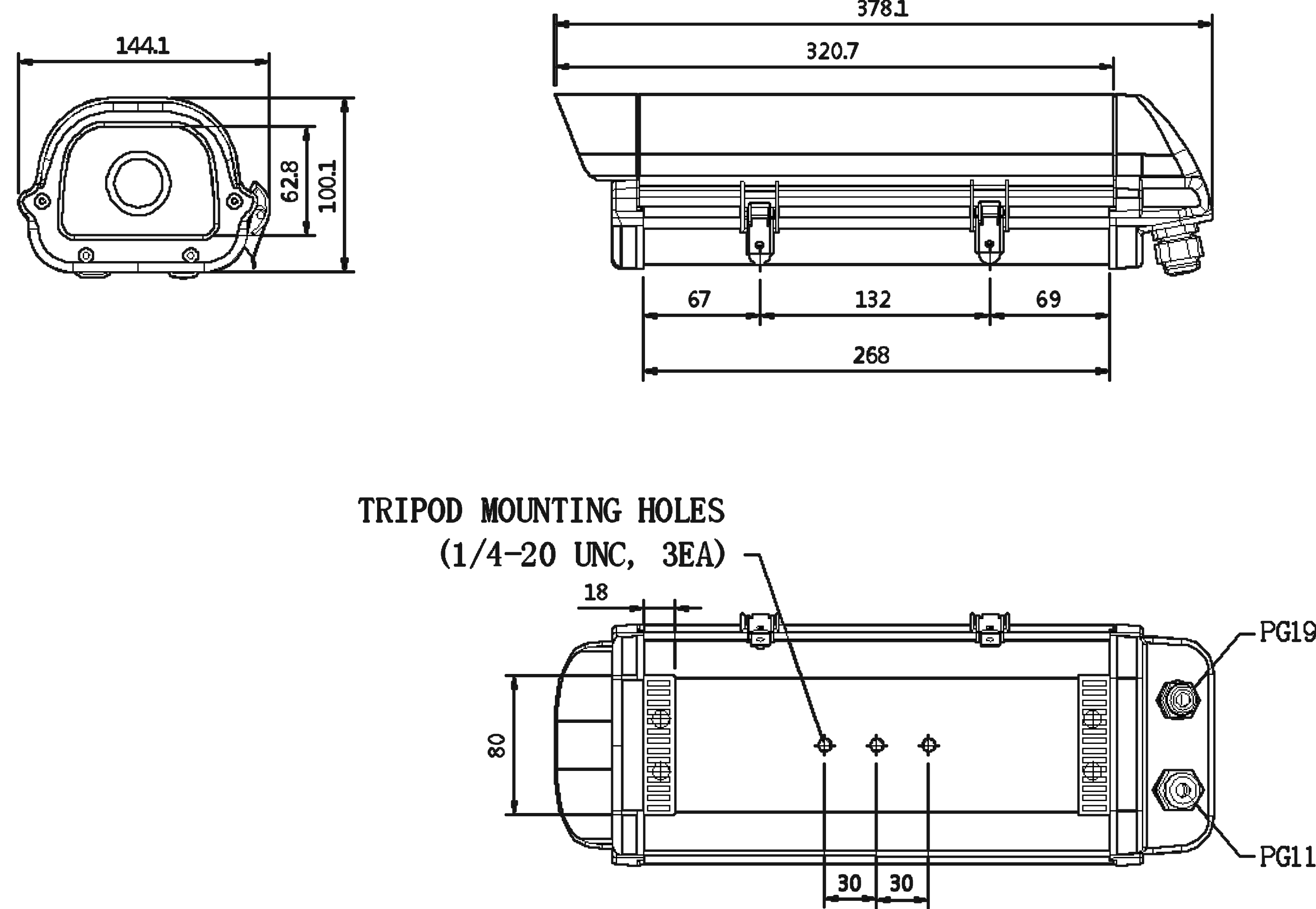

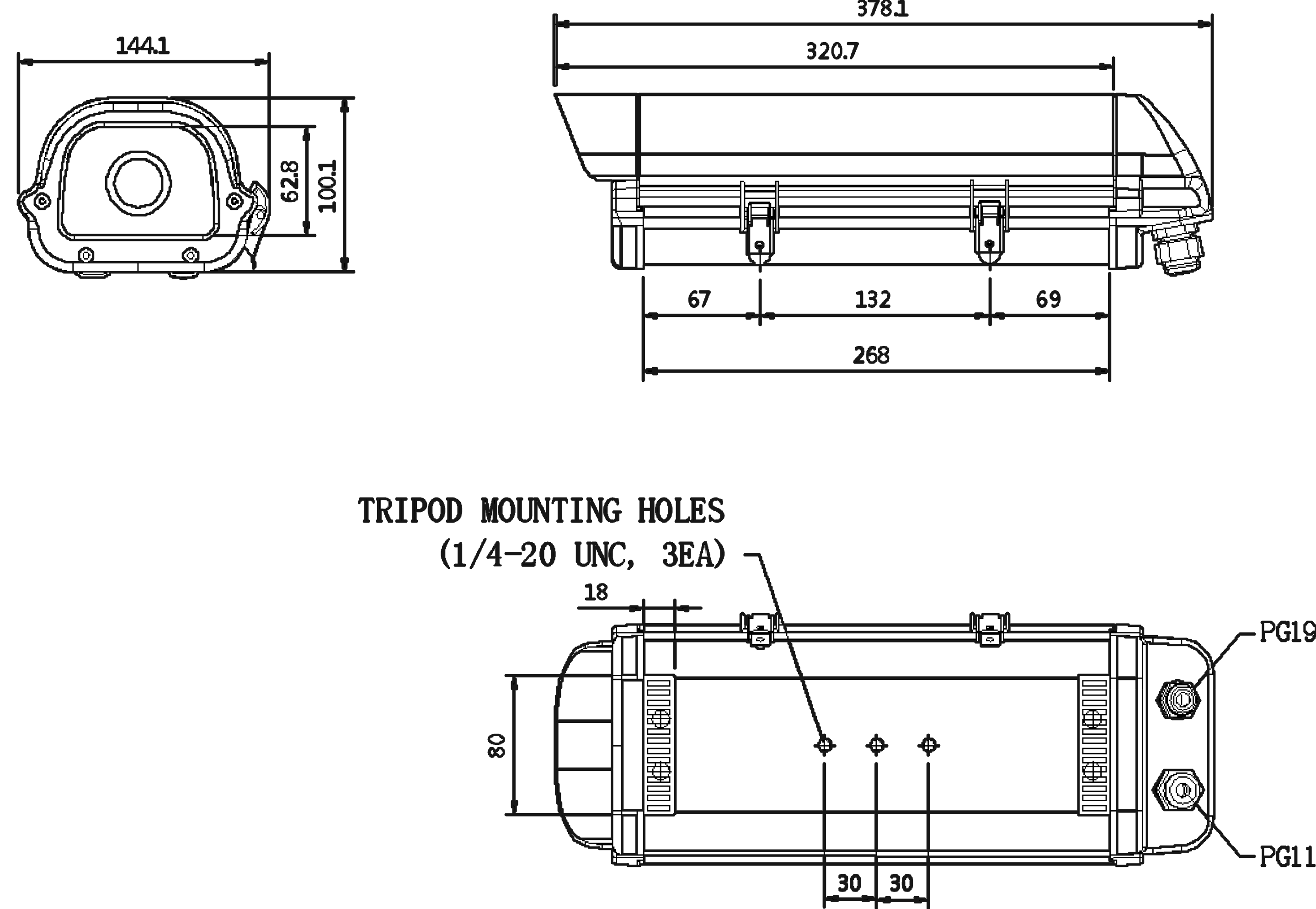

외관도
사양
모델명 | EM-IHE(N2812Z) | EM-IHE(IR2812Z) | EM-IHE(IR0550Z) | |
---|---|---|---|---|
Lens | Focal Length | 2.8~12mm | 5.0~50mm | |
FOV | H : 100˚(wide)~30.8˚(tele) V : 64.5˚(wide)~23.3˚(tele) | H : 50.9˚(wide)~7.6˚(tele) V : 27.8˚(wide)~4.3˚(tele) | ||
Focus | Motorized / Auto, Manual | |||
Image | Image Sensor | Sony Starvis 2MP Image Sensor | ||
Size | 1/2.8 inch | |||
Scan System | Progressive Scan | |||
Video Signal to Noise | >50dB | |||
Minimum Illumination | 0.02 lux | 0.02 lux(Color), 0 lux(BW, IR on) | ||
Video | Compress Format | H.264 / MJPEG | ||
Resolution | 1920×1080 / 1280×1024 / 1280×960 / 1280×720 / 640×480 / 320×240 | |||
Max. Frame Rate | 30fps @ All Resolutions | |||
Streaming | Triple Stream (Stream 1,2,3), RTP/RTSP, UnicastRTP, Multicast RTP | |||
Function | Day & Night | Auto / Day(Color) / Night(BW) | ||
Privacy Area | Area On/Off (16 Zone) | |||
Motion Detection | 432 Zone (On/Off, 1~5Step) | |||
WDR | DWDR (1~3 Step) | |||
DNR | Support | |||
Defog | Support | |||
HCL | Support | |||
LDC | Support | |||
Ext. Video | Not Support | |||
Elec. Shutter | Auto(1/30~1/30000), Suppress Rolling, Manual | |||
White Balance | Auto / Indoor / Outdoor / Fluorescent | |||
IR LED | IR LEDs | N/A | 4pcs High LEDs | |
Visible Distance | Max 40M | |||
Audio | Format | G.711 u-law | ||
Streaming | Two way | |||
Event | Sensor In | 1 port | ||
Alarm Out | 1 port | |||
Network | Interface | RJ45 10/100 Base-T | ||
Protocol | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS | |||
ONVIF | Support | |||
Simultaneous Access | Max. 10 users | |||
Power Supply / Current | DC12V 750mA / PoE | |||
Operating Temp / Humidity | -10℃ ~ +40℃ / 0% ~ 90% | |||
Dimension | 144mm X 100mm X 378mm | |||
Weight | Approx. 1100g |
