Fingerprint Authentication

Biometric Authentication System

It is a user authentication solution that fundamentally blocks video retrieval, video backup, and system configuration change by unauthorized users other than registered administrators by utilizing the user’s own biometric information that cannot be forged or stolen.

  • Low 0.0001% false recognition rate
  • Fast and accurate self-developed fingerprint authentication algorithm
  • Manpower and cost savings in management
  • NVR / CMS authentication function
  • Stored recognition information is safely encrypted

Fingerprint Mouse Specification

ModelFM1000HM
Fingerprint SensorOpticalM
Resolution500dpi / 256grayM
Window Size16 x 18.8 mmM
Fingerprint Image Size280 x 320 pixelsM
InterfaceUSB 1.1 Full Speed / USB 2.0 Full Speed CompatibleM
FAR(False Acceptance Rate)≤0.0001%M
FRR(False Rejection Rate)≤1%M
Authentication Speed≥0.2 secsM
Template Size480 BytesM
Fingerprint Rotation Range0 ̊ ~ 360 ̊M
Matching Security Level3 LevelsM
Operating Temp / Humidity0°C ~ 40°C / 0% ~ 90%M
Dimension68(W) x 120(H) x 41(D) mmM
WeightApprox. 145gM

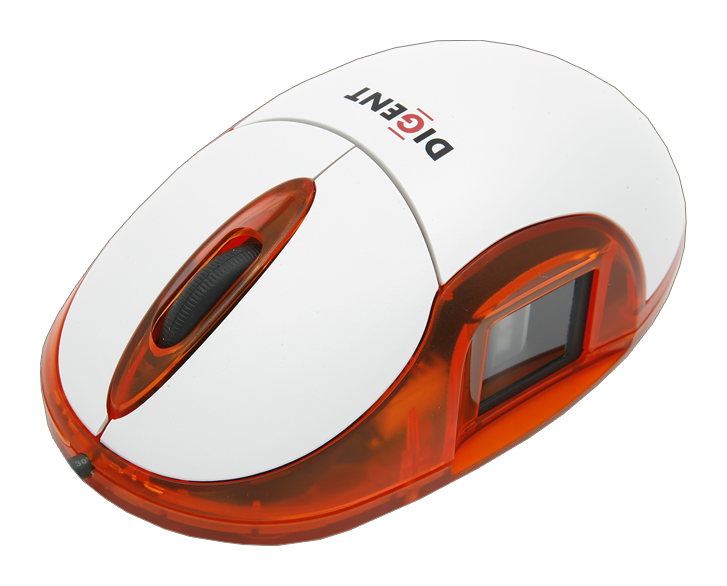

Fingerprint Mouse

※ This product is subject to change without notice for quality improvement.

Use Cases

Fingerprint Mouse Solution
