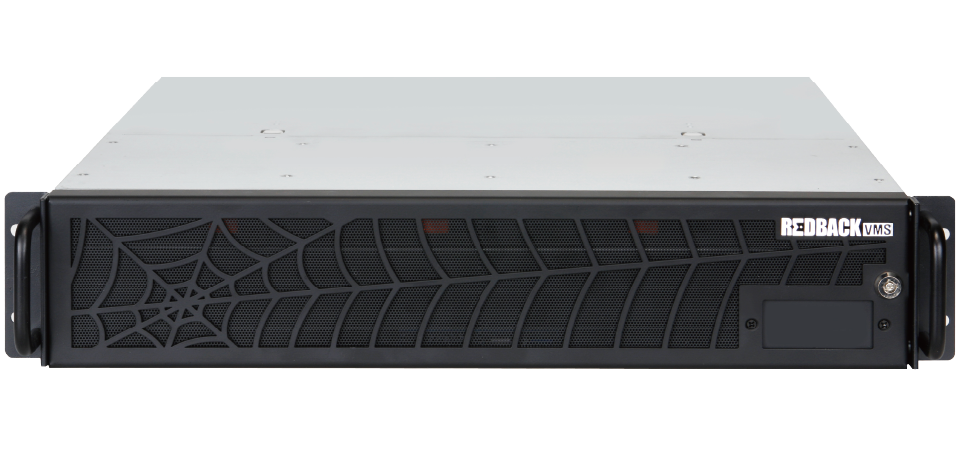

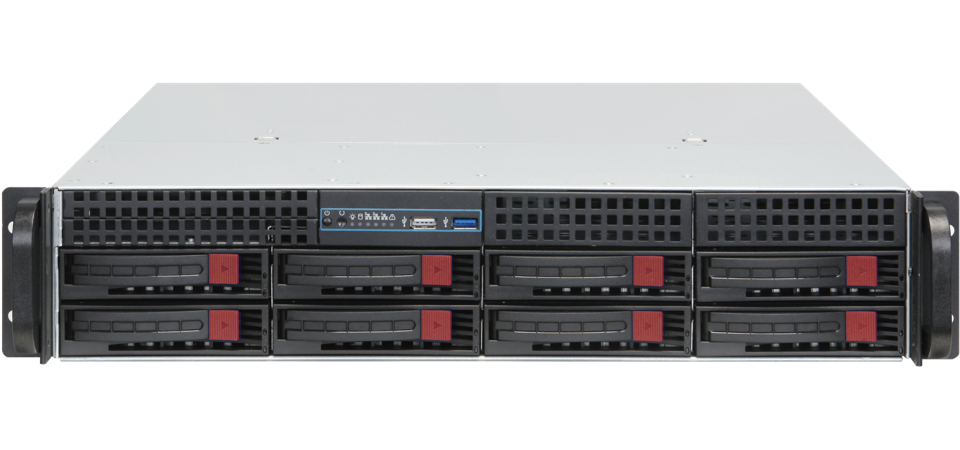

REDBACK VMSB8 Performance Series
Video Management System
Features
- Multi-Channel Reception Distribution Server
- HDD up to 8ea – DB Storage for events
- H.265, H.264 Compression
- Support all resolution including CIF ~12M
- ONVIF/RTSP Standard Protocol
- HTML5 Protocol for video streaming server
- Failover supported
- User authentication with fingerprint mouse
- API for integration with various 3rd party devices supported
- Model Line-up : 256+, 512+CH

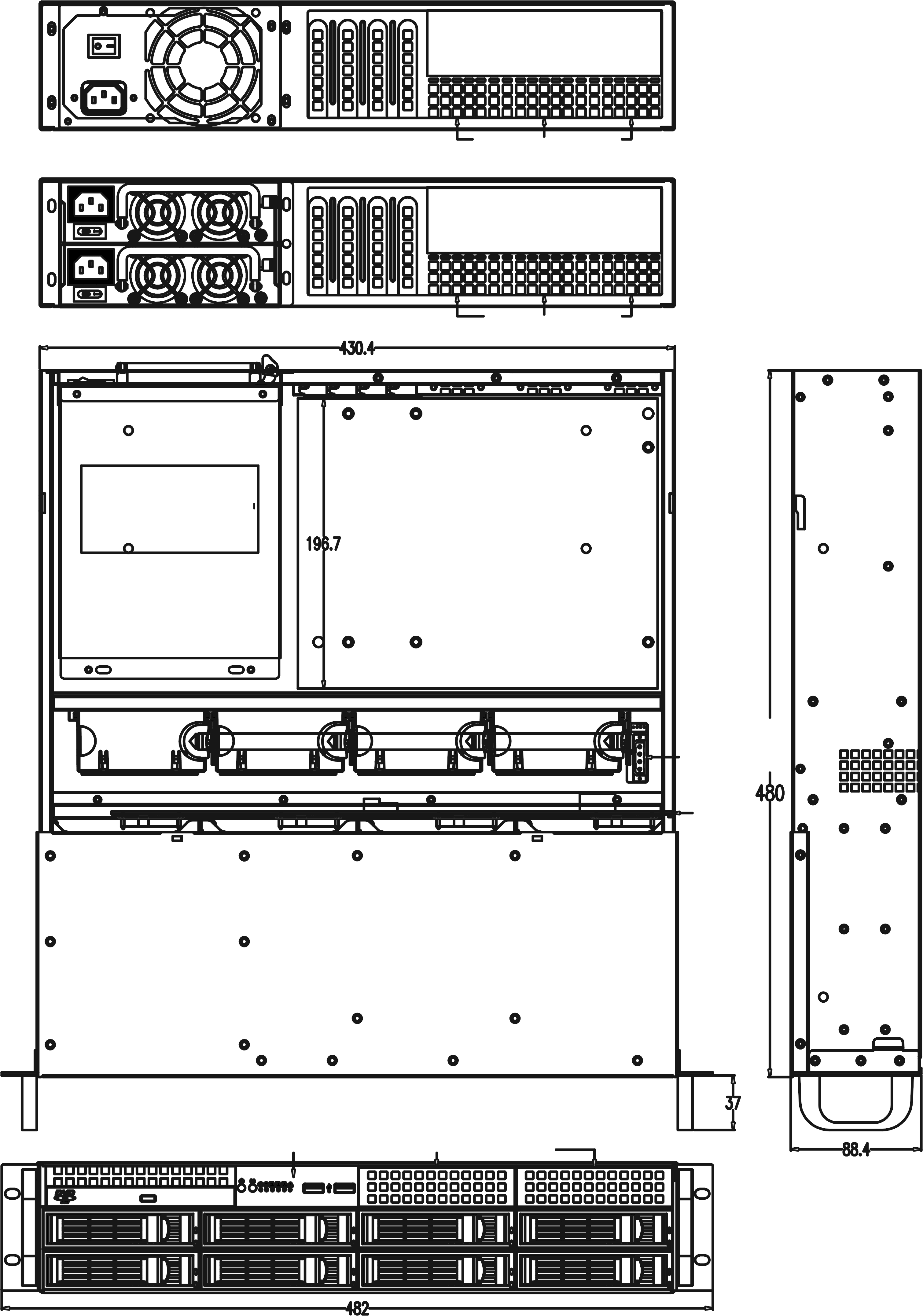

Dimensions
Specification
| Model | EM-VMSB8 | |
|---|---|---|
| CPU | intel i7(12Cores, up to 4.7GHz) | |
| RAM | DDR5 64GB | |
| Display | 2 x HDMI (4K660Hz) | |
| OS Storage | mSATA SSD 120GB | |
| Operating System | Linux 64bit(Embedded) | |
| SW License | 1~1024CH | |
| Network | Interface | 2x 2.5GbE LAN Ports + 1~2x 10Gb SFP+ Ports |
| Total Throughput | Max 15Gbps ~ 25Gbps | |
| Protocols | TCP/IP, UDP, HTTP, NTP, RTP | |
| Concurrent Access | Up to 1,024 Sessions (within bandwidth) | |
| Storage | Default | N/A |
| Available | Up to 8ea SATA type 3.5" HDDs (24TB HDD - Max 192TB, Surveillance / Enterprise Level) | |
| RAID(option) | Support for external RAID 0/1/5/6/50/60 for EM-JBOD24B connections (up to 2ea) (Enterprise Level HDD only, up to 1,152TB) | Non-RAID(option) | HBA for EM-JBOD24B connections (up to 2ea) (Surveillance / Enterprise Level, Max 24TB x 24Bay x 2EA = 1,152TB) |
| SAN (FC,option) | HBA for SAN Storage connections (4G/8G/16G Single/Dual) | |
| iSCSI (IP SAN) | Supported | |
| Security | Multi User Level, Biometric Authentication | |
| Failover | Supported | |
| Data/Time Synchronization | NTP timeserver, own NTP server function, self synchronization via GPS(option) | |
| Operating Temp / Humidity | 5℃~40℃ / 0%~90% | |
| Power Supply / Current | SMPS 500W (input from AC100~240V 50/60Hz) | |
| Product Dimension(W x H x D) / Weight | 430.4(W) X 88.4(H) X 480(D)mm / 12kg (without HDD) | |
| Packing Dimension(W x H x D) / Weight | 570(W) X 175(H) X 710(D)mm / 15.5kg (without HDD) | |
※ USB type product should be used when KVM switches are used. (PS/2 type not available) ※ The specification of this product may change without prior notice.
