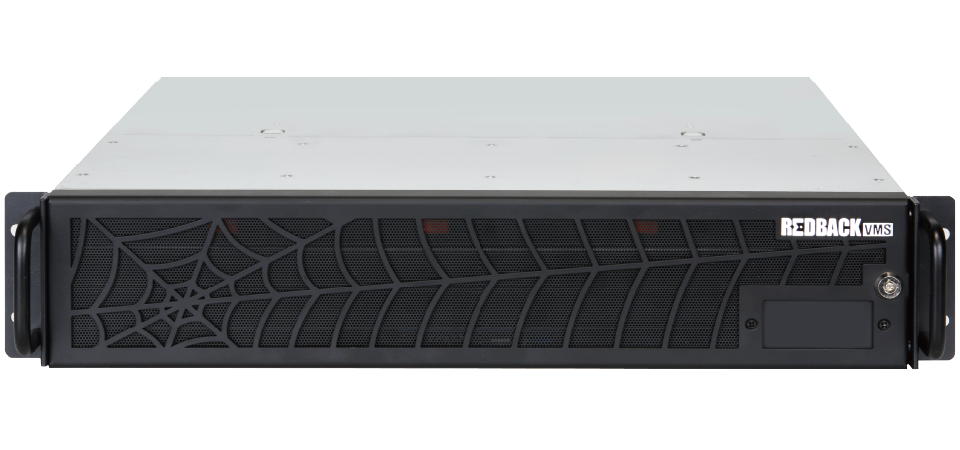

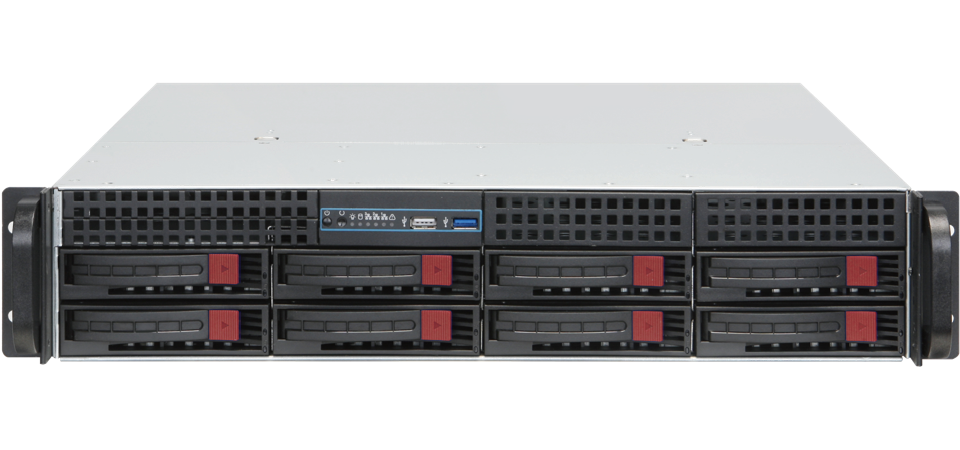

REDBACK VMS Performance Series

Video Management System

2025-08-18 REDBACK VMS

Features

Multi-Channel Reception Distribution Server
HDD up to 8ea – DB Storage for events
H.265, H.264 Compression
Support all resolution including CIF ~12M
ONVIF/RTSP Standard Protocol
HTML5 Protocol for video streaming server
Failover supported
User authentication with fingerprint mouse
API for integration with various 3rd party devices supported
Model Line-up : 256+, 512+CH

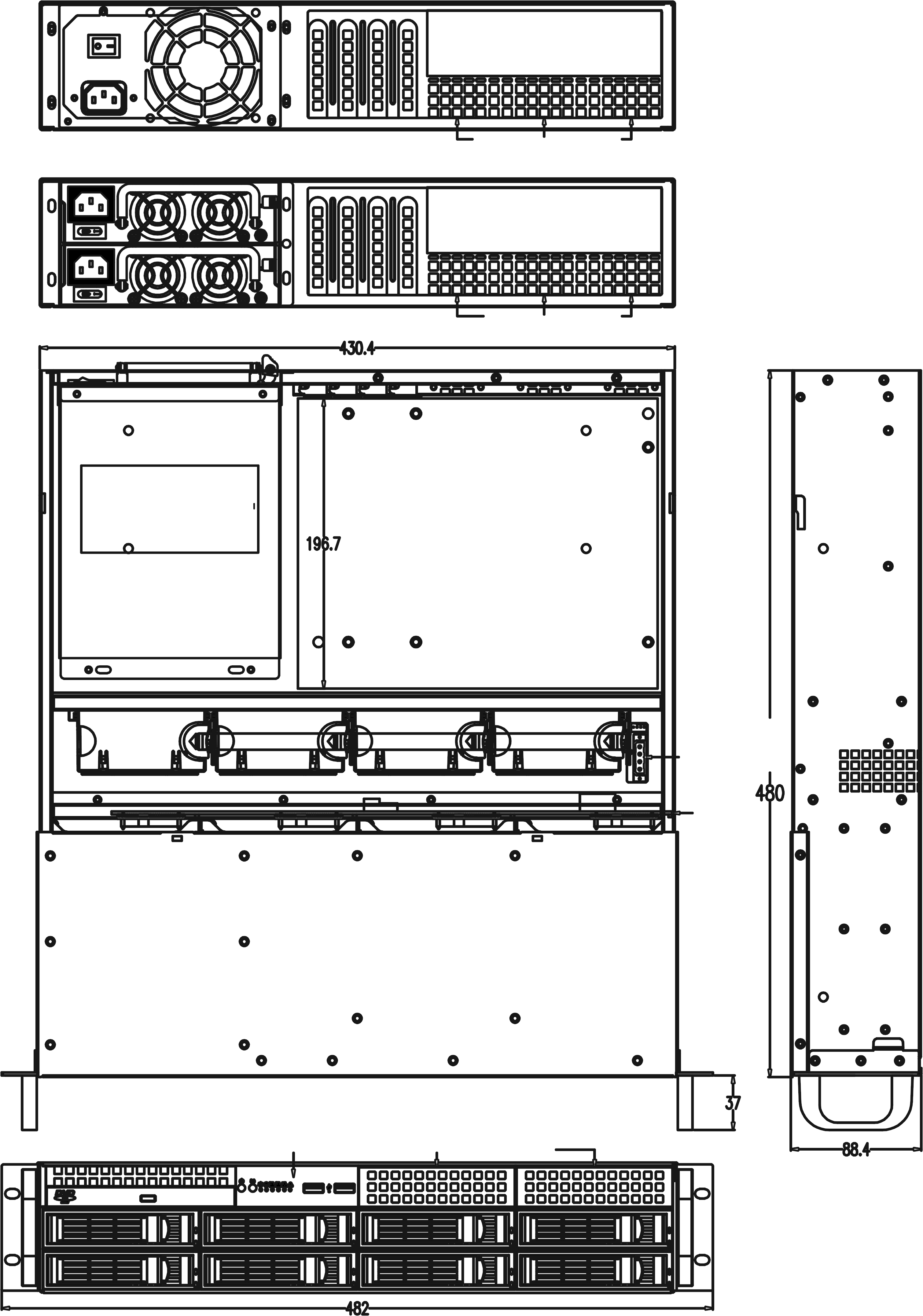

Dimensions

Specification

Model		EM-VMS256B8+	EM-VMS512B8+
Video Input	IP Camera	256CH	512CH
Video Input	Max. License	up to 512CH	up to 1024CH
CPU		intel i7(12Cores, up to 4.7GHz)
RAM		DDR5 32GB	DDR5 64GB
SSD		mSATA SSD 120GB(OS, NVR)
Display	Monitor Output	2 x HDMI (4K60Hz)
Display	Split screen	1/2/4/6/7/9/10/13/16/25/36/49/64/81/100/128
Performance	Live/Play	FHD 64 channel simultaneous live/ play (Max 32Mp support for 1 camera)
Performance	Storage	Storage/Transmission of 128 FHD channels per HDD
Network	Interface	2.5GbE 2ports and 10GbSFP+ 1port	2.5GbE 2ports and 10GbSFP+ 2port
	Bandwidth	15Gbps	25Gbps
	Simultaneous Access	1024(within network bandwidth)
	Protocol	TCP/IP,UDP,DNS,DDNS,HTTP,NTP,RTP/RTCP,RTSP
	Bandwidth Control	Auto, Manual
Recording	Mode	Continuous, Schedule, Event linkage
	Performance	Max CH x 4Mbps (up to Network Bandwidth of Storage System), CIF~32MP
	Compression	H.265 / H.264 / MJPEG / MPEG4
Search/Play	Search Mode	Date / Time Calendar Search, Channel Bundle Search, Event Search
Search/Play	Play-Back Control	Forward / Reverse Playback (High Speed: x1 ~ x32, Low Speed: 1/4 ~ 1/2), Before / After Staff

Common Specification

IP Camera	Resolution	CIF~32M
IP Camera	Protocol	Supported ONVIF / RTSP and Axis / Sony / Panasonic / Hanwha / Truen / Dahua / HIKVISION etc. over 130+
Operating System		Linux 64bit(Embedded)
Storage	Default	N/A
	Available	Up to 8ea SATA type 3.5" HDDs (24TB HDD - Max 192TB, Surveillance / Enterprise Level)
	RAID(option)	Support for external RAID 0/1/5/6/50/60 for EM-JBOD24B connections (up to 2ea) (Enterprise Level HDD only, up to 1,152TB)
	Non-RAID(option)	HBA for EM-JBOD24B connections (up to 2ea) (Surveillance / Enterprise Level, Max 24TB x 24Bay x 2EA = 1,152TB)
	SAN (FC,option)	HBA for SAN Storage connections (4G/8G/16G Single/Dual)
	iSCSI (IP SAN)	Supported
Back-up	Mode	Video (Multiple Channels, Time / Event Subtitle, Encryption), Still Image (Partial Mosaic supported)
Back-up	File Format	MP4, JPG
Event	Type	Motion Detection, Sensor, Relay, Disk Failure, Camera Signal Loss / Recovery, Emergency Call, LPR, POS, Elevator, Flame / Smoke Detection, Abnormal Sound Detection, Thermal Event, Intelligent Server Integration
Event	Action	Recording, Alarm, Camera pop-up, Warning message, Warning sound, E-mail, FTP, Preset
Application	PC	Live, Search, Backup, Event Manager, E-Map, Multi-monitors, Pan/Tilt/Zoom Control, NVR Setting
	Web	Live, Pan / Tilt / Zoom for all channels
	Mobile	iOS / Android Apps
Security		Multi User Level, Biometric Authentication
Failover		Supported
Data/Time Synchronization		NTP timeserver, own NTP server function, self synchronization via GPS(option)
Intelligent Solution	Built-in SW	EMSTONE video analysis AI-based flame/smoke detection 1 channel(※ Additional License Options)
	External	E/L CRT system, EM-call system, LPR Camera, Flame/Smoke Detect system, Password management solution, Video export security system
	Interworking Analysis Server	EMSTONE-AI, Intellivix, NEXREAL, IVS, HanwhaVision, Truen, ITX, CHAJA, Neotech
Operating Temp / Humidity		5℃~40℃ / 0%~90%
Power Supply / Current		SMPS 500W (input from AC100~240V 50/60Hz)
Product Dimension (W x H x D) / Weight		430.4(W) X 88.4(H) X 480(D)mm / 12kg (without HDDs)
Packing Dimension(W x H x D) / Weight		570(W) X 175(H) X 710(D)mm / 12kg (without HDDs)

※ USB type product should be used when KVM switches are used. (PS/2 type not available) ※ The specification of this product may change without prior notice.
