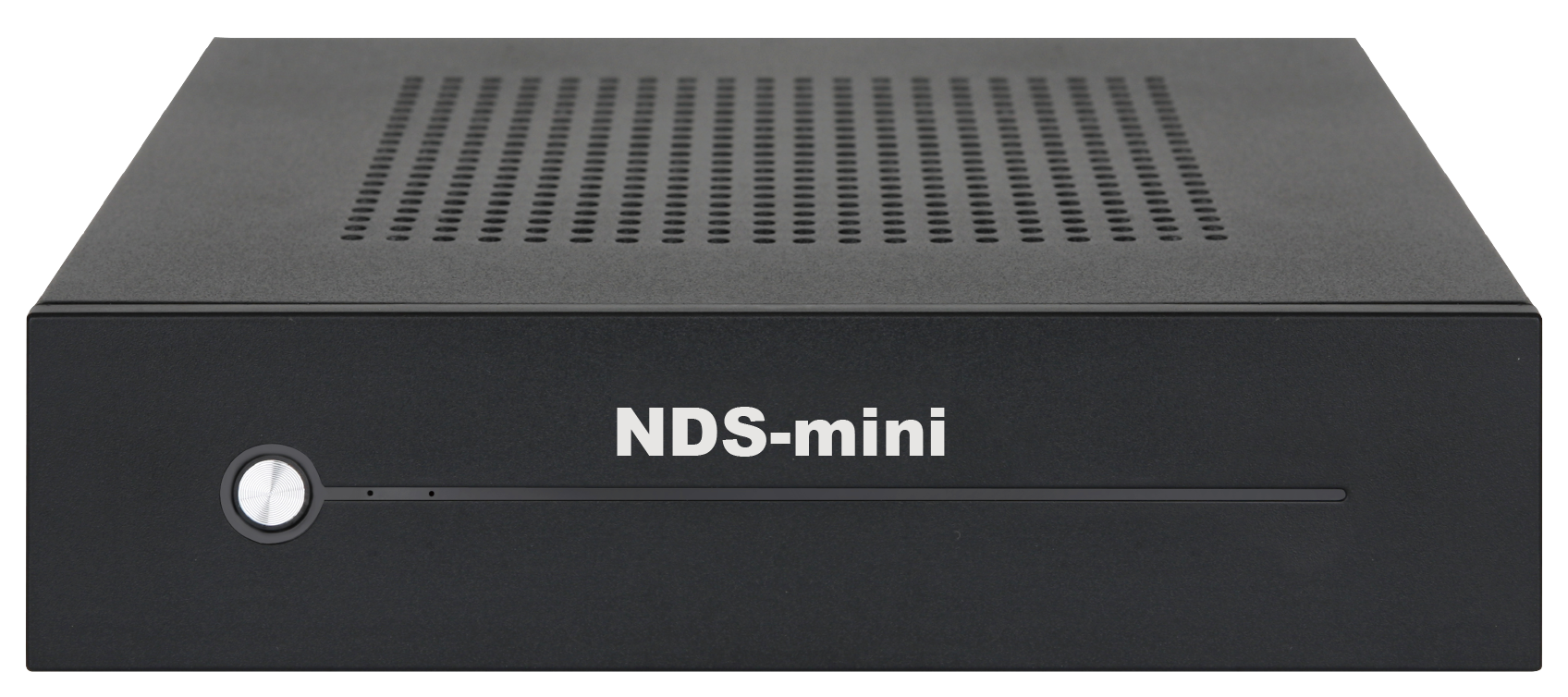

EM-NDS-mini-4K
Network Display Server / IP Video Wall
Features
- Support for 1ea 4K-UHD monitors
- Support for up to 64CH display per monitor
- Support monitor screen pivot (90°/180°/270°)
- Delay-free display using NVR real time protocol
- CMS video and video wall control at the same time
- ROI(Region of Interest) enables natural monitor connection part image
Dimensions
Specification
| Model | EM-NDS-mini-4K | |
|---|---|---|
| Monitor | Output | 1 of HDMI |
| Output Performance | Full-HD Moniter Display - Up to 1 EA(60Hz) Ultra HD Moniter Display - Up to 1 EA(60Hz) | |
| Video Output Performance | Full-HD Monitor | D1(720x480): 1,920fps HD(1280x720): 960fps Full HD(1920x1080): 480fps Ultra HD(3840x2160): 120fps |
| Ultra HD Monitor | D1(720x480): 1,920fps HD(1280x720): 960fps Full HD(1920x1080): 480fps Ultra HD(3840x2160): 120fps | |
| Operating System | Linux 64bit (Embedded) | |
| CPU | Dual Core 1.8GHz or Higher | |
| RAM | DDR4 16G RAM | |
| VGA | Integrated Graphic | |
| Disk | SSD mSATA 16GB | |
| Network | Interface | 2ea of 1/2.5Gbps Ethernet (RJ45) |
| Bandwidth Control | Auto | |
| Operating Temp / Humidity | 0℃~+40℃ / 0% ~ 90% | |
| Power Supply / Current | DC12V 5A | |
| Dimension (W x H x D) | 185(W) x 45(H) x 197.5(D) mm | |
| Weight | Approx. 1.04 kg (without Vesa mount 0.08kg ) | |
※ The specification of this product may change without prior notice.
Downloads
| Type | File |
|---|---|
| Catalog | NDS-mini-4K_CATALOG_EN_20230427.pdf |
