| Camera | Image Sensor | 1/2.8” 5Megapixel progressive CMOS |
|---|
| Image Pixel | 2692 x 1944 pixel |
|---|
| Electronic Shutter Speed | 1sec ~ 1/10,000sec |
|---|
| Min. Illumination | COLOR : 0.05 Lux@F1.6, B/W : 0.001 Lux@F1.6, 0 Lux (IR) |
|---|
| Lens | Lens Type | Motorized |
|---|
| Focal Length | 2.7~13.5mm, F1.6~F2.8 |
|---|
| Field of View | 101.9˚(W) ~33.1˚(T) |
|---|
| Video | Video Compression | H.265 / H.264 / MJPEG |
|---|
| Video Frame Rate | Max.30 fps for all resolution |
|---|
| Function | Day/Night | Auto(CDS/CAM) / Day / Night(ICR) |
|---|
| BLC/HLC/WDR | Yes |
|---|
| Thermal | Detector Type | Uncooled vox microbolometer |
|---|
| Audio Compression | G.711a; G.711U |
|---|
| Resolution | 256 x 192 pixel |
|---|
| Spectral Range | 8 μm–14 μm |
|---|
| Thermal Sensitivity | ≤45mK(@F#1.0, 300k) |
|---|
| Lens | 3.2mm F1.1 (HFOV X VFOV : 51˚x 39˚) |
|---|
| Audio | Audio Compression | Two way, G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz |
|---|
Network | Interface | RJ-45 (10/100 Base-T) | | Protocol | IPv4, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS , DNS, DDNS, DHCP, FTP |
|---|
| Interoperability | ONVIF(Profile S) |
|---|
| User/Host | 10 |
|---|
Power | Power Supply | DC12V(18W), PoE+ | Environment | Operating Conditions | -30°C to +60°C | | Protection | IP66 |
|---|

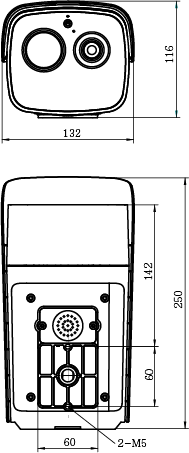

Structure | Dimensions | 250 mm × 128 mm | | Net Weight | 2.9kg |
|---|
