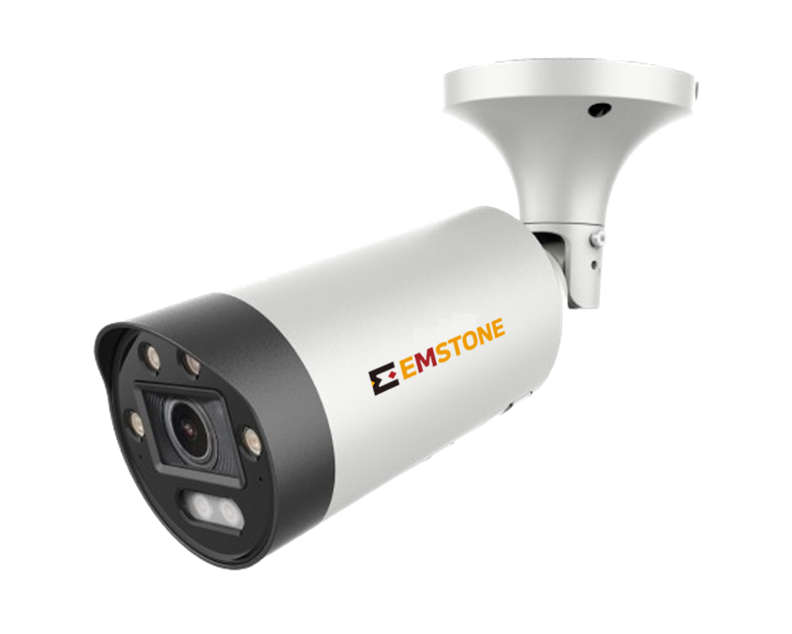

EM-IUV Pseries UHD Bullet Camera
8MP Bullet Type Network IP Camera
Features
- UHD 8Mega-pixel @30fps
- 2.8~12mm Motorized Lens Type
- Clear video quality with H.265 / H.264 compression
- IP67
Dimensions
Specification
| Model | EM-IUV(IR2812ZP) | ||
|---|---|---|---|
| Camera | Image Sensor | 1/1.8" 8Megapixel CMOS | |
| Max. Resolution | 3840 x 2160 pixel | ||
| Electronic Shutter Speed | 1/3 sec ~ 1/10,000sec | ||
| Min. Illumination | COLOR : 0.003 Lux@F1.0, AGC ON ,B/W : 0 Lux with light | ||
| Lens | Lens Type | Motorized vari-focal | |
| Focal Length | 2.8mm ~ 12mm | ||
| Field of View | H : 112˚ ~ 48˚ / V : 59˚ ~ 28˚ | ||
| Video | Video Compression | H.265 / H.264 | |
| Video Frame Rate | Max. 30 fps for / 8M,6M,5M,4M,1080P,720P,D1,CIF | Function | Day/Night | Auto / Day / Night |
| DNR | 2D/3D Support | ||
| BLC/HLC/WDR | Yes | ||
| White Balance | Auto/Manual | ||
| IVS | Motion detection, Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving | Network | Interface | RJ-45 (10/100 Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,IGMP,UPnP,SMTP | ||
| Interoperability | ONVIF(Profile S) | ||
| User/Host | 10 | Power | Power Supply | 12V DC/PoE | Environment | Operating Conditions | -30°C to +60°C /less than ≤ 95% RH |
| Protection | IP67 | Structure | Dimensions | Φ93.5 x 278.9mm |
| Net Weight | 1000g | ||
Downloads
| Type | File |
|---|---|
| Catalog | EM-IUV(IR2812ZP)_CATALOG_EN_20250826.pdf |
