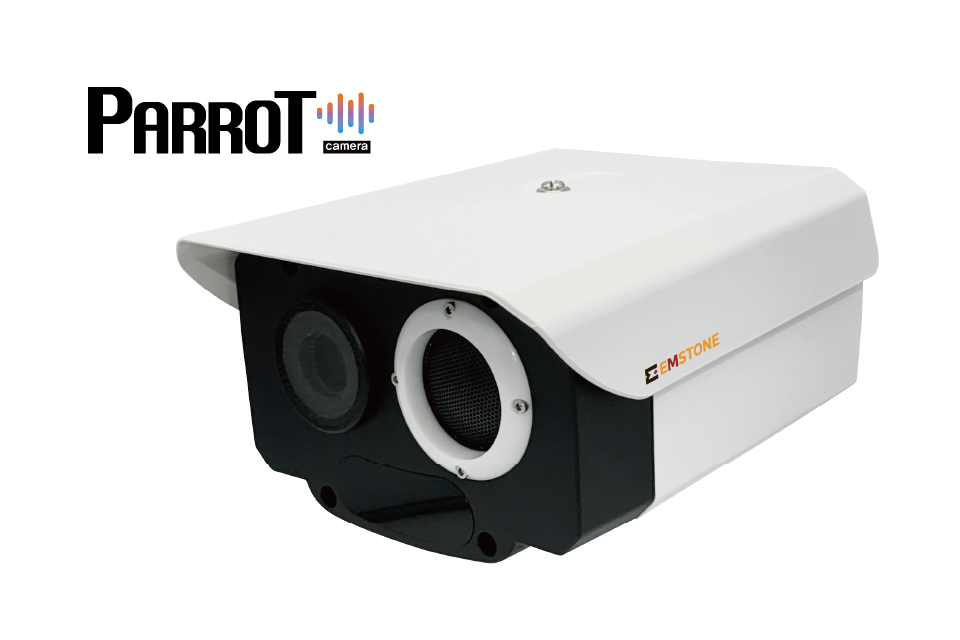

EM-IQV(14W5Z) Parrot Camera
5MP Parrot Camera
Features
- QHD 5Mega-pixel 2560x1920p @30fps
- 5X (2.7~13.5mm) Power Zoom Lens
- 14W Speaker intergrated camera for broadcasting
- TSM (True Sound Monitor / Broadcast transmission comfirmation function)
- Support for PoE(Power over Ethernet)
- IP66
Dimensions
Specification
| Model | EM-IQV(14W5Z) | |
|---|---|---|
| Camera | Image Sensor | 1/2.8” 5Megapixel progressive CMOS |
| Electronic Shutter Speed | 1 sec ~ 1/10,000sec(60/30 mode) 1 sec ~ 1/10,000sec(50/25mode) | |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W), 0 Lux (IR) | |
| Illumination Distance | 30m | |
| Lens | Lens Type | Motorized |
| Focal Length | 2.7 ~ 13.5mm, F1.6 ~ F2.8 | |
| Field of View | 101.9˚(W) ~ 33.1˚(T) | |
| Video | Video Compression | H.265 / H.264 / MJPEG |
| Video Frame Rate | Max. 30 fps for 5M/4M/1080P/720P/D1 | |
| Function | Day/Night | Auto / Day / Night(ICR) |
| BLC/HLC/WDR | Yes | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| IVS | Motion Detection, Line Cross, Area Entrance, Area Exit, Appear/Disappear | |
| Audio | Audio Compression | G.711 A-law, G.711 μ-law, 128kbps, sampling rate 8kHz |
| Speaker | 14W 6Ω | |
| Network | Interface | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, TCP/IP, UDP, RTP, RTSP, RTMP, NTP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP | |
| Interoperability | ONVIF(Profile S) | |
| User/Host | 10 | |
| Power | Power Supply | DC12V 2A / PoE |
| Environment | Operating Conditions | -30°C to +50°C /less than ≤ 95% RH |
| Protection | IP66 | |
| Structure | Dimensions | 190 mm × 233 mm × 125 mm |
| Net Weight | 2.1kg | |
※ USB type product should be used when KVM switches are used. (PS/2 type not available)
※ The specification of this product may change without prior notice.
