EM-IQD(F21P) Sound Detection Camera
5MP Dome Type Sound Detection Camera
Feaures
- QHD 5Mega-pixel @30fps
- Clear video quality with H.265 / H.264 compression
- Support for Sound Detection
- IP67, IK10

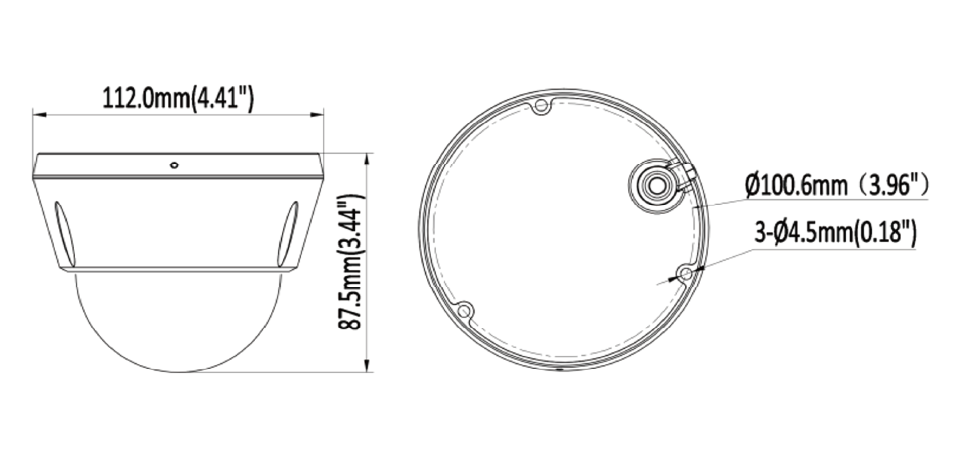

Dimensions
Specification
| Model | EM-IQD(F21P) | |
|---|---|---|
| Camera | Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
| Max. Resolution | 2880(H) x 1620(V) | |
| Electronic Shutter Speed | 1/3 sec ~ 1/10,000sec | |
| Min. Illumination | 0.006Lux@F2.1 (Color), 0.01Lux@F2.1 (B/W) | |
| Lens | Lens Type | Fixed |
| Focal Length | 2.1 mm | |
| Field of View | H : 140˚, V : 79˚ | |
| Video | Video Compression | H.265 / H.264 |
| Video Frame Rate | 30 fps for 1080p/720p/D1/CIF 30 fps for 4M(2560 x 1440) 16:9 30 fps for 5M(2880 x 1620) 16:9 | Function | Day/Night | Auto / Day / Night(ICR) |
| BLC/HLC/WDR | Yes | |
| White Balance | Auto/Manual | |
| IVS | Motion detection, Video Shelter, Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving | |
| Audio | Sound Detection | Yes | Network | Interface | RJ-45 (10/100 Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P | |
| Interoperability | ONVIF(Profile S) | |
| User/Host | 10 | Power | Power Supply | 12V DC/PoE (802.3af) | Environment | Operating Conditions | -30°C to +60°C /less than ≤ 95% RH |
| Protection | IP67, IK10 | Structure | Dimensions | 112 mm × 87.5 mm |
| Net Weight | 0.6kg | |
※ USB type product should be used when KVM switches are used. (PS/2 type not available) ※ The specification of this product may change without prior notice.
