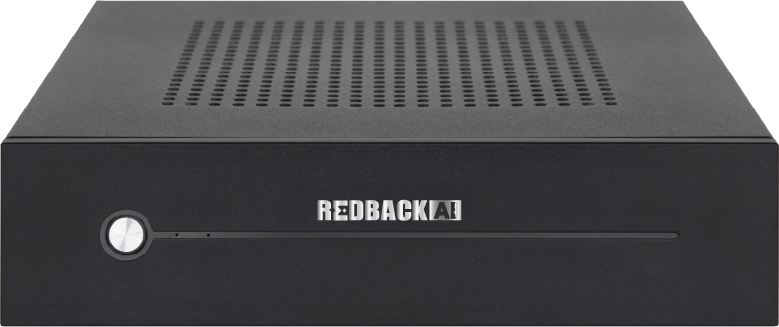

AI-SERVER-mini
AI Analysis Server mini
Feaures
- Deep learning-based video analytics server
- Enable video analytics by simply adding an AI server to existing CCTV systems
- Choose type - Intelligent Analytics, License Plate Recognition (LPR), Fire Detection (Flame/Smoke)
- Model Line-up: 4CH, 8CH, 16 CH, optional CH

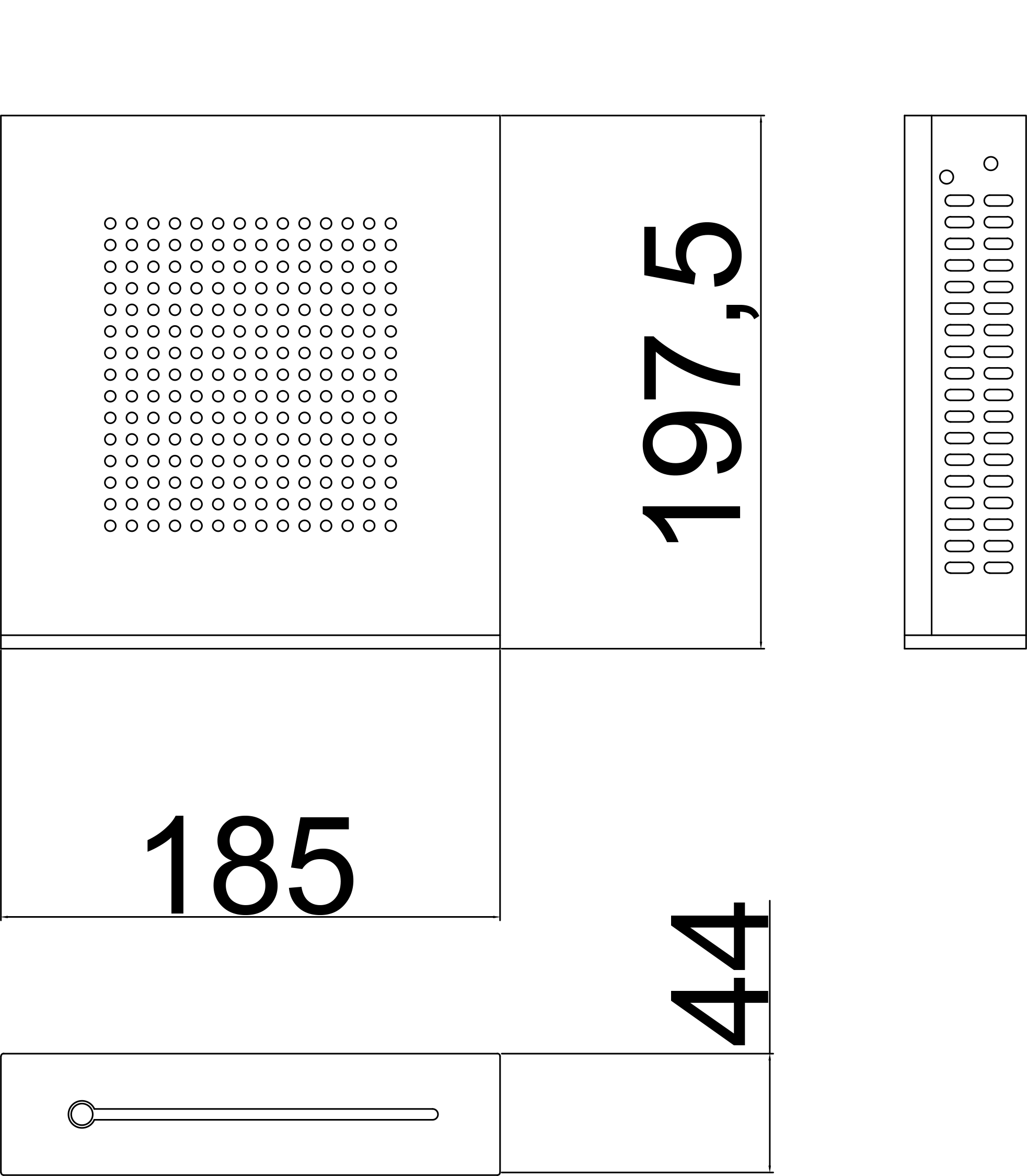

Dimensions
Specification
| Model name | EM-AI04mini | EM-AI08mini | EM-AI16mini | EM-AI00mini | |
|---|---|---|---|---|---|
| Video input | Default | 04 | 08 | 16 | 0 |
| Max | Up to 4CH | Up to 8CH | Up to 16CH | Up to 16CH | |
| Inference Budget | 20 | 20 | 24 | 24 | |
| CPU | intel i5(14cores) | ||||
| GPU | Intel Arc Graphics | ||||
| NPU | Intel NPU3 (11TOPs) | ||||
| Total TOPs(CPU+GPU+NPU) | Up to 34TOPs | ||||
| RAM | DDR5 16GB | DDR5 32GB | |||
| SSD | M.2 SSD 128GB (OS, Event DB) | ||||
| Display | Monitor output | 1 x HDMI(8K60Hz) + 1 x HDMI(4K60Hz) | |||
| Split screen | (1/2/4) | (1/2/4/6/9) | (1/2/4/6/10/13/16) | depend on CH | |
| performance | Live | FHD 4CH | FHD 8CH | FHD 16CH | up to license | backup | Event Data Only |
| Network | interface | 2.5GbE 2port | |||
| bandwidth | 5Gbps | ||||
| Simultaneous Access | 1024(Within network bandwidth) | ||||
| protocol | TCP/IP,UDP,DNS,DDNS,HTTP,NTP,RTP/RTCP,RTSP | ||||
| Bandwidth control | Auto,Manual | ||||
| IP camera | Resolution | CIF-32M | |||
| protocol | ONVIF / RTSP and Axis / Sony / Panasonic / Hanwha / Truen / Dahua / HIKVISION etc. over 130+ | ||||
| OS | Linux 64bit (Embedded) | ||||
| Alarm event | type | Motion Detection, Sensor, Relay, Camera Signal Loss / Recovery | |||
| External | Emergency Call, POS, Thermal Event(Thermal, Sensor) | ||||
| Intelligent Event | LPR | EMSTONE video analysis AI-based LPR (Option) | |||
| Fire / Smoke | EMSTONE video analysis AI-based flame/smoke detection (Option) | ||||
| Intelligent Analytics Part 1 | EMSTONE video analysis AI-based Intrusion/Loitering/Queuing/people counting/crowding, Safety Zone Intrusion/fail/Fighting/Personal protective Equipment(PPE) and ETC | ||||
| 3rd Party | Abnormal Sound Detection, LPR/Directional Vehicle Number Extraction camera or sever, video analysis flame/smoke detection system | ||||
| Interworking Analysis Server | Intellivix, Nexreal, IVS, HanwhaVision, Truen, ITX, CHAJA, Neotech and ETC | ||||
| Action | Alarm, Camera pop-up, Warning message, Warning sound, E-mail, FTP, Preset, HTTPS API Support | ||||
| Security | Multi User Level, Biometric authentication support | ||||
| Data/Time Synchronization | NTP timeserver, own NTP server function, self synchronization via GPS(option) | ||||
| Operating Temp / Humidity | 5℃~40℃ / 0%~90% | ||||
| Power Supply / Current | DC12V 10A (AC 100-240V input) | ||||
| Dimension (W x H x D) | 185(W) x 45(H) x 197.5(D) mm / Approx. 1.14 kg (Vesa mount 0.08kg Without) | ||||
| Package Dimension (W x H x D) | 350(W) x 76(H) x 235(D) mm / Approx. 1.95 kg | ||||
※ The specification of this product may change without prior notice.
