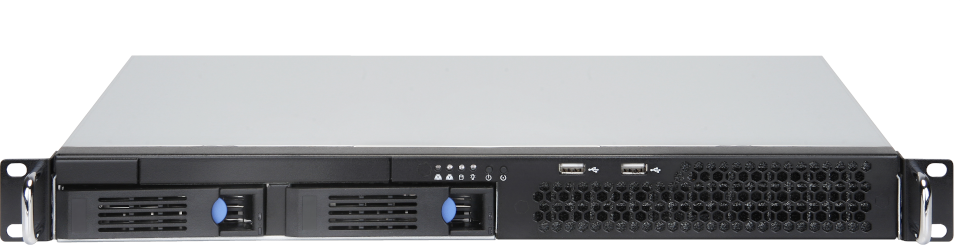

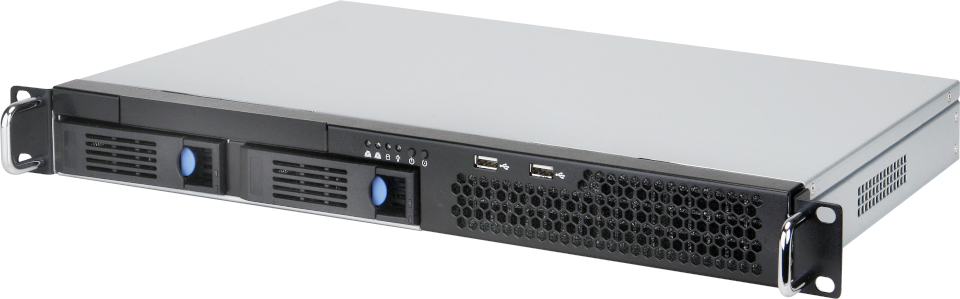

1U B2 Essential Series

1U 2Bay Storage Type PC based NVR

Features

  • 3.5" HDD up to 2ea (Max. 32TB)
  • Highly reliable 64-bit Linux-based network video recorder
  • Clear video quality with H.265 / H.264 compression
  • Support all resolutions including 12M / 8M / 5M / 2M / 1.3M
  • Fast and stable system operation using DOM-SSD
  • ONVIF / RTSP standard protocol
  • Various display mode and full screen mode
  • Continuous / Scheduled / Event Recording Modes
  • Various events like motion / sensor / camera signal loss / disk failures
  • Multi User Level and Screen Lock
  • User Authentication with Fingerprint Mouse
  • Smart Failover: Automatic takeover to spare units when system is stopped
  • Bidirectional audio transmission
  • Advanced LPR(License Plate Recognition) by 3rd party LPR server
  • Model Line-up : 4, 9, 16 CH

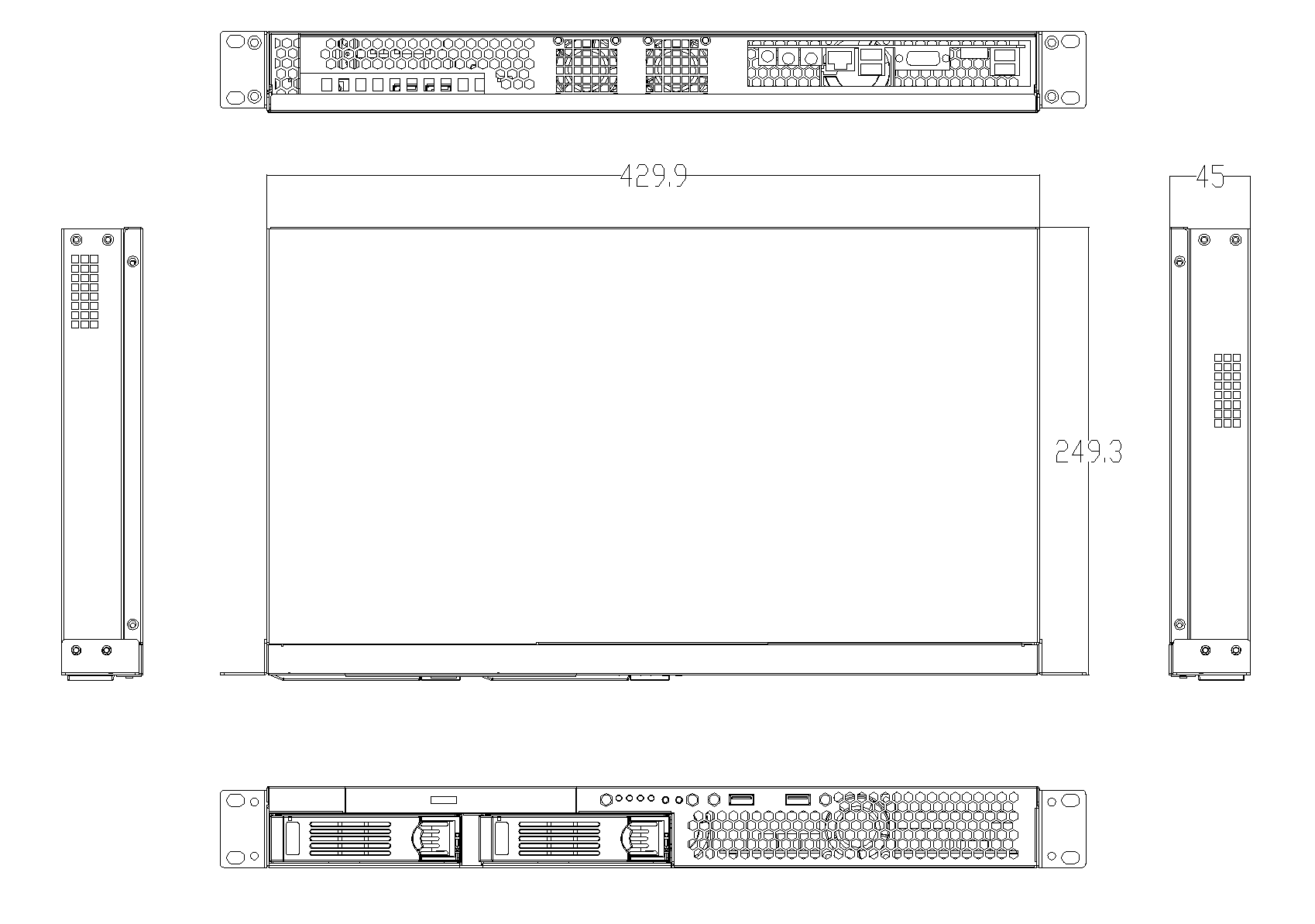

Dimensions

Specification

ModelEM-04B2EM-09B2EM-16B2
Video
Input
IP Camera4CH9CH16CH
CPUDual Core 1.0GHz or Higher
RAMDDR3/4 2GBDDR3/4 4GBDDR3/4 8GB
DisplayMonitor
Output
1xHDMI / 1xVGA
Mode1 / 2 / 41 / 2 / 4 / 6 / 7 / 91 / 2 / 4 / 6 / 7 / 9 / 10 / 13 / 16
LivePerformance12M(-CH/-fps)
8M(1CH/30fps)
5M(2CH/60fps)
1080P(4CH/120fps)
12M(1CH/30fps)
8M(2CH/60fps)
5M(4CH/120fps)
1080P(9CH/270fps)
12M(2CH/60fps)
8M(4CH/120fps)
5M(6CH/180fps)
1080P(16CH/480fps)
RecordingModeContinuous / Scheduled / Events
PerformanceMax. 500Mbps
CIF~12MP
CompressionH.265 / H.264 / MPEG4 / MJPEG
Search /
Replay
MethodCalendar / Channel Grouping / Events
Performance12M(-CH/-fps)
8M(1CH/30fps)
5M(2CH/60fps)
1080P(4CH/120fps)
12M(1CH/30fps)
8M(2CH/60fps)
5M(4CH/120fps)
1080P(9CH/270fps)
12M(2CH/60fps)
8M(4CH/120fps)
5M(6CH/180fps)
1080P(16CH/480fps)
Replay
Control
Play forward / backward (fast:x1~x32, slow:1/4~1/2), Step forward / backward

Common Specification

IP CameraResolutionCIF~12M
ProtocolONVIF / RTSP and Proprietary protocols for more than 70 vendors including UDP / Axis / Dynacolor / Sony / Panasonic / Hanwha Techwin
Operating SystemLinux 64bit(Embedded) / mSATA 8GB(dedicated for OS, NVR SW)
StorageBasicN/A
Internal3.5" HDD up to 2ea (16TB HDD, Max. 32TB)
RAID
(Optional)
Not Supported
Hot SwapHot Plug supported
ExternalNot Supported
BackupModeVideo (Multiple Channels, Time / Event Subtitle, Encryption), Still Image (Partial Mosaic supported)
File FormatMP4, JPG
EventTypeMotion Detection, Sensor, Relay, Disk Failure, Camera Signal Loss / Recovery, Emergency Call, LPR, POS, Elevator, Flame / Smoke Detection, Abnormal Sound Detection, Thermal Event, Intelligent Server Integration
ActionRecording, Alarm, Camera pop-up, Warning message, Warning sound, E-mail, FTP, Preset
ApplicationPCLive, Search, Backup, Event Manager, E-Map, Multi-monitors, Pan/Tilt/Zoom Control, NVR Setting
WebLive, Pan / Tilt / Zoom for all channels
MobileiOS / Android Apps
NetworkInterface10/100/1000 Base-Tx Ethernet (RJ45) - 1ea
Simultaneous
Access
1024 (within network bandwidth)
ProtocolTCP/IP, UDP, DNS, DDNS, HTTP, NTP, RTP/RTCP, RTSP
Bandwidth
Control
Automatic, Manual
SecurityMulti User Level
FailoverSupported
Time SynchronizationWindows / NTP Time Server Synchronization, Integrated NTP Server, GPS Synchronization(Option)
Intelligence
Solution
Built-inLPR, Flame/Smoke Detection, VP(Video Privacy Mgt) (※ License Option)
ExternalElevator CRT Servers, EM-Call Servers, LPR Servers, LPR Cameras, Flame/Smoke Detect Servers
Operating Temp / Humidity5℃~40℃ / 0%~90%
Power Supply / CurrentDC12V 5A Adapter (AC100 ~ 240V 50/60Hz)
Dimension (W x H x D)430.0(W) Ⅹ 44.5(H) Ⅹ 249.5(D)mm
Weight3.66kg (without HDDs)

※ USB type product should be used when KVM switches are used. (PS/2 type not available)
※ The specification of this product may change without prior notice.
